Excel integration

The instructions below describe how to deploy YTsaurus Excel integration in Kubernetes. To learn more about the supported functionality, see Working with Microsoft Excel tables.

Description

The integration includes two microservices:

Exporter: Downloads data from schematized static YTsaurus tables or Query Tracker results as an Excel spreadsheet.
Uploader: Uploads data from Excel spreadsheets into static YTsaurus tables.

You can find the entire microservice code in a dedicated repository at ytsaurus/ytsaurus-excel-integration.

Installing the Helm chart

Both services are installed with one Helm chart.

Prepare the values.yaml file.

Minimal configuration:

settings:
  clusters:
    - proxy: http-proxies.default.svc.cluster.local
      # Specifies the proxy alias used in the API path:
      #   <http_addr>/<api_path_prefix>/<api_endpoint_name>/api/
      # Default: matches the proxy.
      api_endpoint_name: <cluster-name> # Your cluster name (see //sys/@cluster_connection/cluster_name)
  cors:
    allowed_hosts:
      - "yt.example.com" # Your UI address

Install the chart:

helm install ytsaurus-excel oci://ghcr.io/ytsaurus/ytsaurus-excel-chart \
  --version 0.0.1 \
  -f values.yaml \
  -n <namespace>

Configuring network access and integrating with the UI

To make Excel export and import functions appear in the interface, configure accessibility of services for the user's browser and specify their addresses in the UI configuration.

Production

The recommended method for production environments is to configure Ingress.

Sample values.yaml file with CORS configuration for your UI domain:

settings:
  clusters:
    - proxy: http-proxies.default.svc.cluster.local
      api_endpoint_name: ytsaurus
  exporter:
    api_path_prefix: "api/excel/exporter"
  uploader:
    api_path_prefix: "api/excel/uploader"
  cors:
    allowed_hosts:
      - "yt.example.com"

Sample Ingress manifest:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ui-ingress
  namespace: <namespace>
spec:
  rules:
    - host: <your-ui-domain> # Specify your UI domain here
      http:
        paths:
          - backend:
              service:
                name: ytsaurus-excel-uploader-svc
                port:
                  name: http
            path: /api/excel/uploader
            pathType: Prefix
          - backend:
              service:
                name: ytsaurus-excel-exporter-svc
                port:
                  name: http
            path: /api/excel/exporter
            pathType: Prefix
          - backend:
              service:
               name: ytsaurus-ui-ytsaurus-ui-chart
               port:
                  name: http
            path: /
            pathType: Prefix

UI setup:

Add the following settings to the values.yaml file of the ytsaurus-ui chart:

settings:
  exportTableBaseUrl: "https://yt.example.com/api/excel/exporter"
  uploadTableExcelBaseUrl: "https://yt.example.com/api/excel/uploader"

Update the UI chart:

helm upgrade ytsaurus-ui oci://ghcr.io/ytsaurus/ytsaurus-ui-chart \
  --version "0.5.0" \
  -f values.yaml \
  -n <namespace>

Testing

For local development and testing, you can use port-forward:

Sample values.yaml:

settings:
  clusters:
    - proxy: http-proxies.default.svc.cluster.local
      api_endpoint_name: minisaurus
  cors:
    allowed_hosts:
      - "localhost:8080" # Local UI address

Allow access to the microservices:

kubectl port-forward service/ytsaurus-excel-uploader-svc 9095:80

kubectl port-forward service/ytsaurus-excel-exporter-svc 9096:80

UI setup:

Add the following settings to the values.yaml file of the ytsaurus-ui chart:

settings:
  uploadTableExcelBaseUrl: "http://localhost:9095"
  exportTableBaseUrl: "http://localhost:9096"

Update the UI chart:

helm upgrade ytsaurus-ui oci://ghcr.io/ytsaurus/ytsaurus-ui-chart \
  --version "0.5.0" \
  -f values.yaml \
  -n <namespace>

Checking the result

Open a schematized static table in the YTsaurus UI.
Click Download.

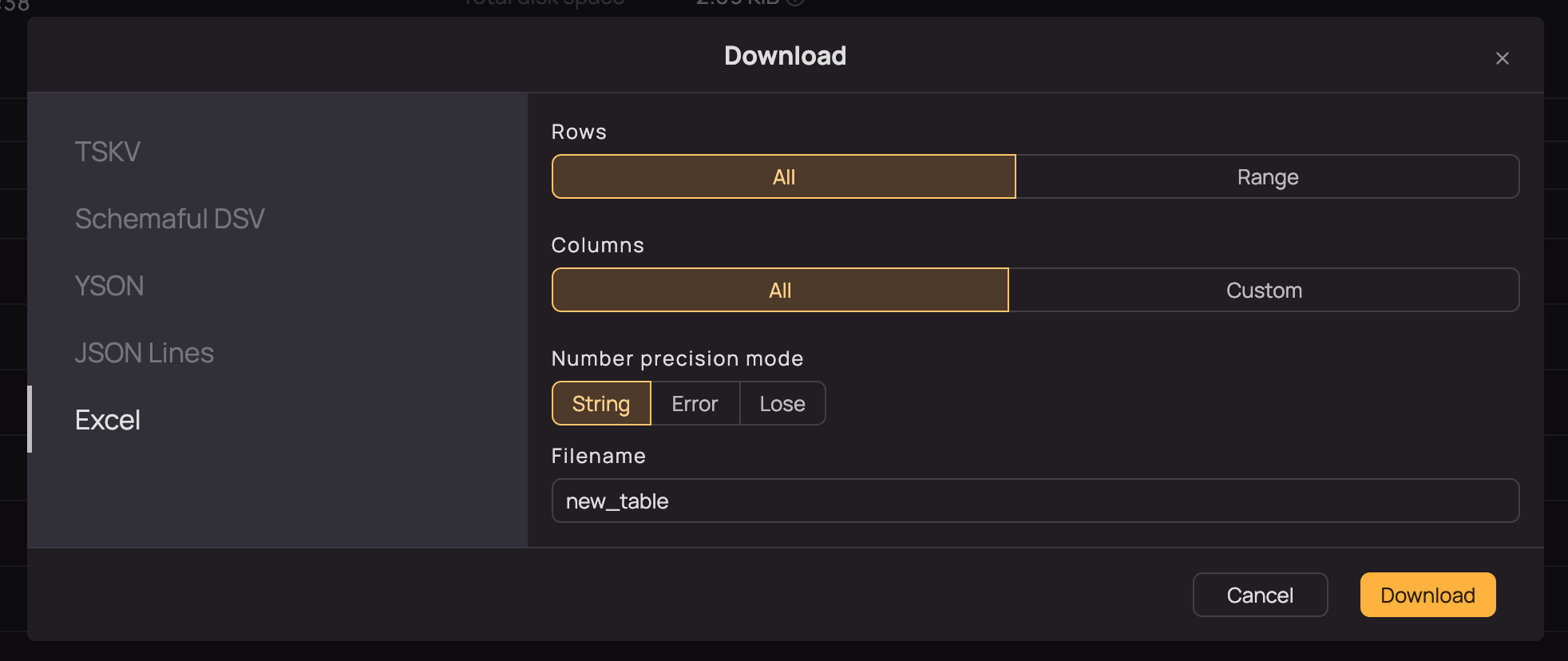

Make sure the Excel tab is displayed:

The tab appears if the request from your browser to <exportTableBaseUrl>/<cluster-name>/api/ready returns 200 OK. If you don't see the tab, verify the following settings: UI Helm Chart, Excel Helm Chart, and Ingress.

Detailed configuration

Below are the parameters that you might need to override:

replicaCount: 1

settings:
  cors:
    # Allowed hostnames, for example, yt.example.com. Checked via exact match: origin.Host == "yt.example.com"
    allowed_hosts: []
    # Allowed hostname suffixes, for example, .yt.example.com. Checked via HasSuffix(origin.Host, ".yt.example.com")
    allowed_host_suffixes: []

  # List of clusters with cluster-specific settings.
  clusters:
    - proxy: http-proxies.default.svc.cluster.local
      # Specifies the proxy alias used in the API path:
      #   <http_addr>/<api_path_prefix>/<api_endpoint_name>/api/
      # Default: matches the proxy.
      api_endpoint_name: minisaurus

  # Name of the request cookie that the service forwards to YTsaurus.
  # YTsaurus proxy uses this cookie to authorize requests.
  auth_cookie_name: "YTCypressCookie"
  sso_cookie_name: "yt_oauth_access_token"

  exporter:
    # Maximum request processing time.
    http_handler_timeout: 2m

    # Maximum input file size.
    max_excel_file_size_bytes: 104857600 # (100 MB)

    # Specifies the global path prefix used in the API path:
    #   <http_addr>/<api_path_prefix>/<api_endpoint_name>/api/
    # Default: empty.
    api_path_prefix: ""

  uploader:
    # Maximum request processing time.
    http_handler_timeout: 2m

    # Maximum input file size.
    max_excel_file_size_bytes: 104857600 # (100 MB)

    # Specifies the global path prefix used in the API path:
    #   <http_addr>/<api_path_prefix>/<api_endpoint_name>/api/
    # Default: empty.
    api_path_prefix: ""

You can view all the parameters in the source code.
