Cluster monitoring setup

YTsaurus allows you to export cluster object metrics to various monitoring systems.

Prometheus is used to collect metrics. Grafana can be used to view metrics, as well as built-in dashboards in the YTsaurus UI.

Installing and configuring Prometheus

Prometheus Operator is used to collect metrics. YTsaurus components and Odin are automatically labeled for metric collection. The Odin Helm chart automatically creates a ServiceMonitor resource for its metrics during installation. To collect metrics from cluster components, we will create a separate ServiceMonitor manually.

Install the Prometheus operator according to the instructions.

Make sure the operator pod is in the Running state:

kubectl get pods -l app.kubernetes.io/name=prometheus-operator

Create a prometheus.yaml file:

prometheus.yaml

apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
  name: prometheus
spec:
  serviceAccountName: prometheus
  resources:
    requests:
      memory: 400Mi
  enableAdminAPI: true

  storage:
    volumeClaimTemplate:
      spec:
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 10Gi

  serviceMonitorSelector:
    matchLabels:
      yt_metrics: "true"

  additionalArgs:
    - name: log.level
      value: debug

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: prometheus

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: prometheus
rules:
  - apiGroups: [""]
    resources:
      - services
      - endpoints
      - pods
      - namespaces
    verbs: ["get", "list", "watch"]
  - apiGroups:
      - "discovery.k8s.io"
    resources:
      - endpointslices
    verbs:
      - "get"
      - "list"
      - "watch"

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: prometheus
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus
subjects:
  - kind: ServiceAccount
    name: prometheus
    namespace: default

---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: ytsaurus-metrics
  labels:
    yt_metrics: "true"
spec:
  namespaceSelector:
    any: true
  selector:
    matchLabels:
      yt_metrics: "true"
  endpoints:
    - port: ytsaurus-metrics
      path: /solomon/all
      relabelings:
        - sourceLabels: [__meta_kubernetes_pod_label_ytsaurus_tech_cluster_name]
          targetLabel: cluster
      metricRelabelings:
        - targetLabel: service
          sourceLabels:
            - service
          regex: (.*)-monitoring
          replacement: ${1}

If necessary, you can modify the ServiceMonitor based on your requirements.

For ClusterRoleBinding in the subjects[0].namespace section, you need to specify the namespace in which you plan to deploy Prometheus.

Apply the prometheus.yaml file:

kubectl -n <namespace> apply -f prometheus.yaml

Make sure the Prometheus pod is in the Running state:

kubectl -n <namespace> get pods -l app.kubernetes.io/name=prometheus

Make sure the Prometheus service is created:

kubectl -n <namespace> get svc -l managed-by=prometheus-operator

Execute a simple query and see which pods metrics are collected from:

Open access to the Prometheus service:

kubectl -n <namespace> port-forward service/prometheus-operated 9090:9090

Via Prometheus UI

Via `curl`

If possible, open the Prometheus UI: http://localhost:9090. If not possible, use the curl approach.

In the Query section, execute a simple query:

yt_accounts_chunk_count{account="sys"}

We see the number of chunks for the "sys" account:

Prometheus UI

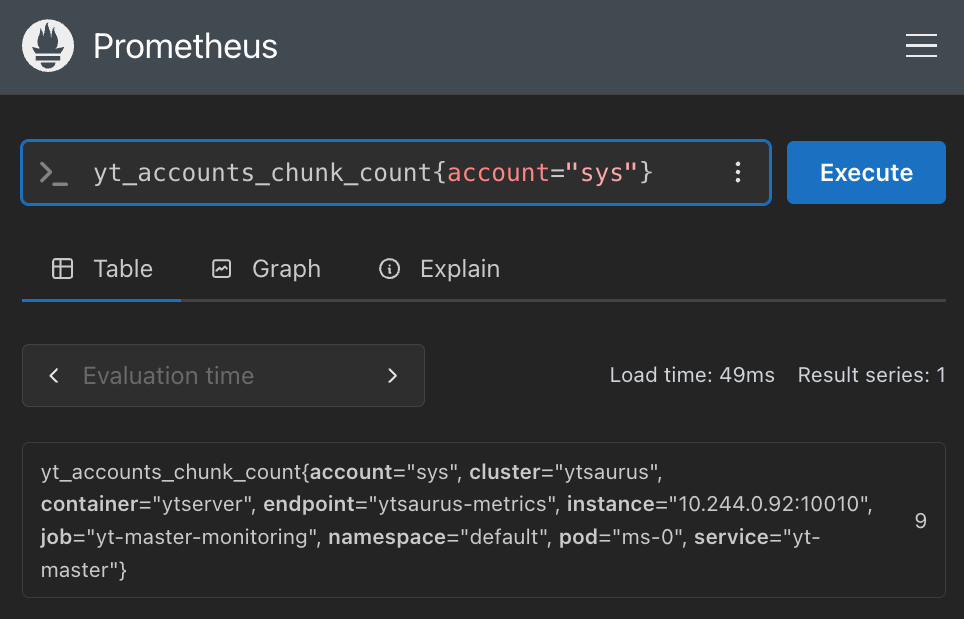

Fig. 1. Result of querying the number of chunks for the "sys" account in the Prometheus UI.

It is important to make sure that cluster is set in the metrics.

In the Status -> Target health section, you can find a list of all monitored components.

Execute a simple PromQL query:

curl 'http://localhost:9090/api/v1/query?query=yt_accounts_chunk_count\{account="sys"\}' | jq

We see the number of chunks for the "sys" account:

{
  "status": "success",
  "data": {
    "resultType": "vector",
    "result": [
      {
        "metric": {
          "__name__": "yt_accounts_chunk_count",
          "account": "sys",
          "cluster": "ytsaurus",
          "container": "ytserver",
          "endpoint": "ytsaurus-metrics",
          "instance": "10.244.0.178:10010",
          "job": "yt-master-monitoring",
          "namespace": "ytsaurus-dev",
          "pod": "ms-0",
          "service": "yt-master"
        },
        "value": [
          1766656488.985,
          "605"
        ]
      }
    ]
  }
}

Also, execute a request to get a list of pods from which metrics are collected:

curl 'http://localhost:9090/api/v1/targets?state=active' | jq '
{
  target_count: (.data.activeTargets | length),
  targets: [
    .data.activeTargets[] | {
      pod: .labels.pod,
      namespace: .labels.namespace,
      job: .labels.job,
      health: .health,
      lastError: .lastError,
      scrapeUrl: .scrapeUrl,
      scrapePool: .scrapePool
    }
  ]
}'

Example of expected result:

{
  "target_count": 16,
  "targets": [
    {
      "pod": "end-0",
      "namespace": "ytsaurus-dev",
      "job": "yt-exec-node-monitoring",
      "health": "up",
      "lastError": "",
      "scrapeUrl": "http://10.244.0.200:10029/solomon/all",
      "scrapePool": "serviceMonitor/default/ytsaurus-metrics/0"
    },
    ...
  ]
}

If you have Odin installed, check if its metrics are being collected:

Collection of qualitative metrics from Odin is carried out through a separate ServiceMonitor created by the Odin chart itself.

Via Prometheus UI

Via `curl`

In the Target health section, it will be displayed like this:

Odin service in Prometheus UI

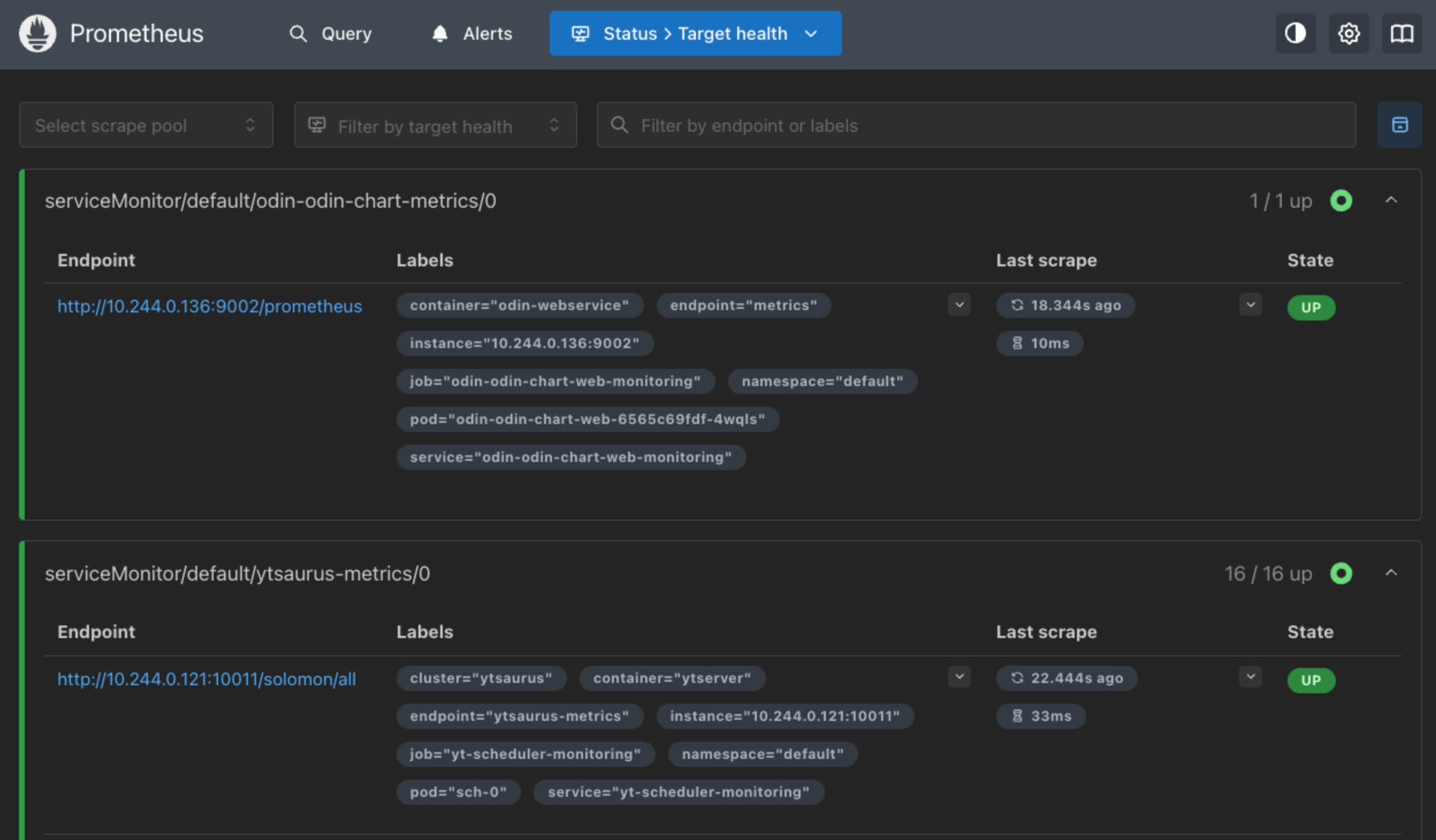

Fig. 2. Example of Odin service display in Prometheus.

Execute a request to get a list of pods containing odin in the name, from which metrics are collected:

curl 'http://localhost:9090/api/v1/targets?state=active' | jq '
.data.activeTargets
| map(select(.labels.pod | contains("odin")))
| {
    targets: map({
        pod: .labels.pod,
        namespace: .labels.namespace,
        job: .labels.job,
        health: .health,
        lastError: .lastError,
        scrapeUrl: .scrapeUrl,
        scrapePool: .scrapePool
    })
}'

Example of expected result:

{
  "targets": [
    {
      "pod": "odin-odin-chart-web-6f8f5cbb7f-n5slb",
      "namespace": "default",
      "job": "odin-odin-chart-web-monitoring",
      "health": "up",
      "lastError": "",
      "scrapeUrl": "http://10.244.0.33:9002/prometheus",
      "scrapePool": "serviceMonitor/default/odin-odin-chart-metrics/0"
    }
  ]
}

If it is not displayed, check for the presence of ServiceMonitor in the same namespace as Prometheus:

kubectl -n <namespace> get servicemonitor -l app.kubernetes.io/name=odin-chart

If it is missing, you need to enable ServiceMonitor creation in the chart settings.

Done! Prometheus is installed and configured to collect qualitative and quantitative metrics from Odin and YTsaurus components.

Installing dashboards in YTsaurus UI

YTsaurus provides ready-made dashboards for monitoring. They can be displayed directly in the YTsaurus web interface.

Pass the PROMETHEUS_BASE_URL environment variable with the internal Prometheus address to the UI:

To configure the integration, you need a UI installed via the Helm chart.

In the PROMETHEUS_BASE_URL environment variable, you need to pass the internal Prometheus URL, for example: http://prometheus-operated.<namespace>.svc.cluster.local:9090/. Add the variable to the ui.env section of your values.yaml file:
```
ui:
  env:
    - name: PROMETHEUS_BASE_URL
      value: "http://prometheus-operated.<namespace>.svc.cluster.local:9090/"
```
Update the chart settings:
```
helm upgrade --install yt-ui ytsaurus-ui/packages/ui-helm-chart/ -f values.yaml
```
Dashboards displayed in the UI are stored in Cypress in //sys/interface_monitoring. To create and upload them, the generate_dashboards utility is used. Go to the directory with the utility and compile it:
```
git clone https://github.com/ytsaurus/ytsaurus
cd ytsaurus/yt/admin/dashboards/yt_dashboards/bin
../../../../../ya make
```
Specifying the cluster proxy and token, create the //sys/interface_monitoring node and upload the master-accounts dashboard to Cypress:
```
export YT_PROXY=<proxy>
export YT_TOKEN=<token>

yt create map_node //sys/interface_monitoring
./generate_dashboards submit-cypress master-accounts --backend grafana
```
After that, the dashboard will appear in the YTsaurus web interface.

To view some dashboards, access rights to the viewed objects are required. For example, for the master-accounts dashboard to work, the use permission on the requested account is required.

Installing and configuring Grafana

Create a grafana.yaml file:

grafana.yaml

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-pvc
  labels:
    app: grafana
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: Secret
metadata:
  name: grafana-secret
  labels:
    app: grafana
stringData:
  admin-user: admin
  admin-password: password
type: Opaque
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-datasources
  labels:
    app: grafana
data:
  prometheus.yaml: |-
    apiVersion: 1
    datasources:
      - name: Prometheus
        type: prometheus
        url: http://prometheus-operated.<namespace>.svc.cluster.local:9090
        access: proxy
        isDefault: true
        editable: true
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: grafana
  labels:
    app: grafana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
    spec:
      securityContext:
        fsGroup: 472
      containers:
        - name: grafana
          image: grafana/grafana:12.1.4
          ports:
            - containerPort: 3000
              name: http
          env:
            - name: GF_SECURITY_ADMIN_USER
              valueFrom:
                secretKeyRef:
                  name: grafana-secret
                  key: admin-user
            - name: GF_SECURITY_ADMIN_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: grafana-secret
                  key: admin-password
          volumeMounts:
            - mountPath: /var/lib/grafana
              name: grafana-storage
            - mountPath: /etc/grafana/provisioning/datasources
              name: grafana-datasources
              readOnly: true
          resources:
            requests:
              cpu: 250m
              memory: 750Mi
            limits:
              cpu: 250m
              memory: 750Mi
      volumes:
        - name: grafana-storage
          persistentVolumeClaim:
            claimName: grafana-pvc
        - name: grafana-datasources
          configMap:
            name: grafana-datasources
---
apiVersion: v1
kind: Service
metadata:
  name: grafana
  labels:
    app: grafana
spec:
  type: ClusterIP
  ports:
    - port: 3000
      targetPort: http
  selector:
    app: grafana

It is worth specifying a secure password in the Secret and/or creating it via kubectl create secret instead of apply.

In the ConfigMap in the url field, you need to replace <namespace> with the one you are using.

Apply the grafana.yaml file:

kubectl -n <namespace> apply -f grafana.yaml

Make sure the pod and service for Grafana are running:
```
kubectl -n <namespace> get all -l app=grafana
```
Go to the Grafana interface, execute a simple query and create a service account:

Open access to the UI:
```
kubectl -n <namespace> port-forward service/grafana 3000:80
```
Go to the UI: http://localhost:3000.

In the left collapsible window, go to the Connections -> Data sources section.

If the Prometheus datasource already exists, go to it and click Save & test at the very bottom. If the response is "Successfully queried the Prometheus API.", then Grafana has successfully connected to Prometheus.

If any error occurred, check the specified "Prometheus server URL". Next, update the ConfigMap from the previous stage so that the URL and other parameters in it are correct. Also, for this datasource, save the uid:
How to get the datasource UID?
Go to the page with the UID:
```
http://localhost:3000/connections/datasources/edit/prometheus
```
The last part of the URL, namely prometheus, in this case will be the UID we need.
The dashboard generator interacts with Grafana using a service account. You can get a token in Administration -> Users and access -> Service accounts. The service account role must be at least "Editor". Save the service account token, for example, glsa_bk1LYYY.
Using the generate_dashboards utility assembled in the previous section, generate and upload the master-accounts dashboard to Grafana:
```
./generate_dashboards \
    --dashboard-id ytsaurus-master-accounts \
    --grafana-api-key glsa_bk1LYYY \
    --grafana-base-url http://localhost:3000/ \
    --grafana-datasource '{"type":"prometheus","uid":"prometheus"}' \
    submit master-accounts \
    --backend grafana
```
It is recommended to pass the dashboard name with the ytsaurus- prefix to the --dashboard-id parameter. This will be required for further linking the YTsaurus UI with Grafana.

The uploaded dashboard will be visible in the Dashboards section.

Redirects from YTsaurus UI to Grafana

Open public access to Grafana, for example at https://grafana.ytsaurus.tech/.
Pass the GRAFANA_BASE_URL environment variable with the external Grafana address to the YTsaurus UI in the same way as in the previous section of the documentation.
To the right of the time range selection, a "Grafana" button will appear, clicking on which the user will be taken to the same dashboard with the same parameters for the same time interval.

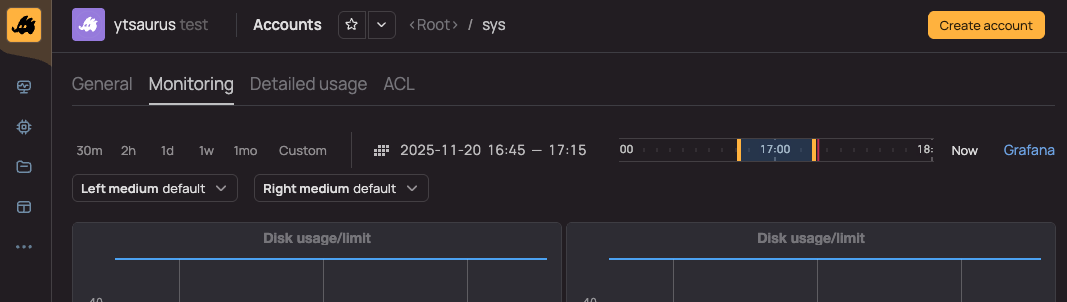

Fig. 3. Demonstration of the button in the internal cluster UI.

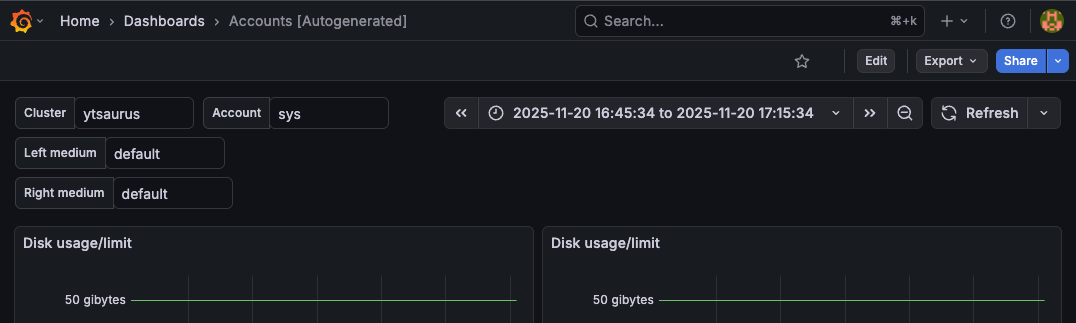

Fig. 4. Grafana interface with the same parameters as in the internal UI from Fig. 3.

By default, the button is available to all cluster users.

If you create a document //sys/interface_monitoring/allow_grafana_url, the button will be visible only to users who have the use permission on this document.

Supported dashboards

Currently, the following dashboards are supported:

master-accounts
scheduler-operation
bundle-ui-user-load
bundle-ui-resource
bundle-ui-cpu
bundle-ui-memory
bundle-ui-disk
bundle-ui-lsm
bundle-ui-network
bundle-ui-efficiency
bundle-ui-rpc-proxy-overview
bundle-ui-rpc-proxy
scheduler-internal
scheduler-pool
cluster-resources
master-global
master-local
queue-metrics
queue-consumer-metrics
http-proxies

Microservices

Description
