How to try YTsaurus

This guide offers a look at YTsaurus in action and describes the process of installing and starting a cluster. You'll deploy a local YTsaurus cluster, create a table, and run a simple SELECT query. Then, you'll deal with a slightly more complex challenge and solve the classic Word Count problem with a MapReduce operation.

Note

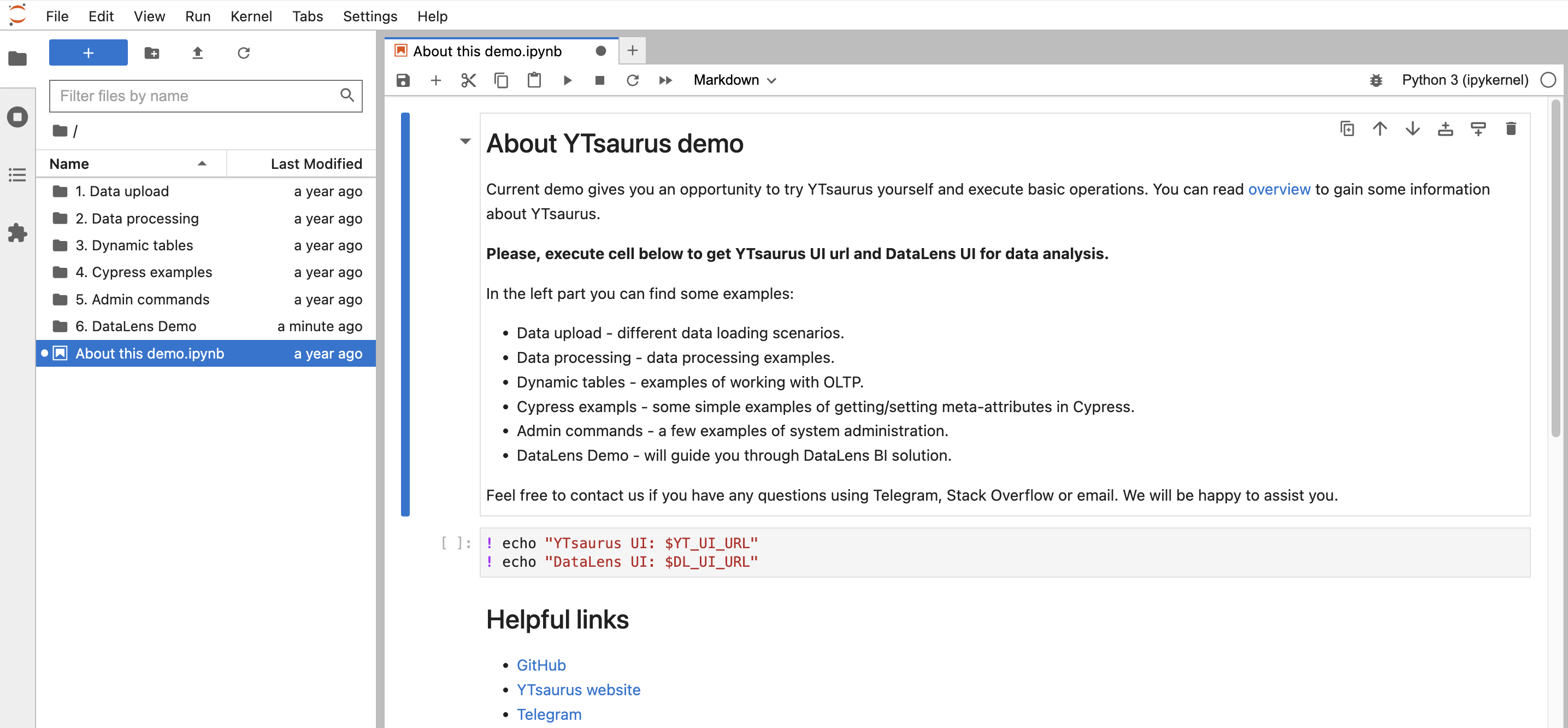

The fastest way to familiarize yourself with the product's features is by using the Demo Stand. It provides temporary access to a demo cluster that includes all the required YTsaurus components. All you need is a web browser.

Before you start

  • We recommend using an x86_64 Linux operating environment for YTsaurus. If you're using MacOS with an Apple Silicon processor, you'll need to use the x86 emulation mode to install YTsaurus locally. This can be achieved by using the Docker Desktop virtualization platform with Rosetta 2 enabled. However, keep in mind that YTsaurus isn't guaranteed to work in emulation mode.

  • In this guide, you'll start a YTsaurus cluster with a minimal configuration, which means it will offer no guarantees of fault tolerance. Don't use this configuration in a production environment or for performance testing. Examples of how to configure your cluster configuration are available in the Administrator manual.

  • For the examples to work correctly, Python 3.8+ must be installed on your system.

Installing and starting a YTsaurus cluster

This guide offers two methods for installing a YTsaurus cluster: using Docker and using Minikube.

Regardless of the installation method, the required system components will be deployed in the process, including the master server, scheduler, YQL, Query Tracker, and others. All examples in this guide — table creation, data upload, and running MapReduce — apply regardless of your preferred installation method and will be the same for both Docker and Minikube.

Docker
  • Docker
  • Minikube
  1. Install Docker:

  2. Download the run_local_cluster.sh script for deploying the cluster, and set execution permissions:

    mkdir ~/yt-local && cd ~/yt-local
    curl -s https://raw.githubusercontent.com/ytsaurus/ytsaurus/main/yt/docker/local/run_local_cluster.sh > run_local_cluster.sh
    chmod +x run_local_cluster.sh

  3. Run the script to deploy the cluster:

    ./run_local_cluster.sh


    The script creates and runs docker containers for deploying YTsaurus. If the operation is successful, you'll see the following message:

    Congratulations! Local cluster is up and running. To use the cluster web interface, point your browser to http://localhost:8001. Or, if you prefer command-line tool 'yt', use it like this: 'yt --proxy localhost:8000 <command>'.


    Remember the addresses listed in this message — you'll need them later.

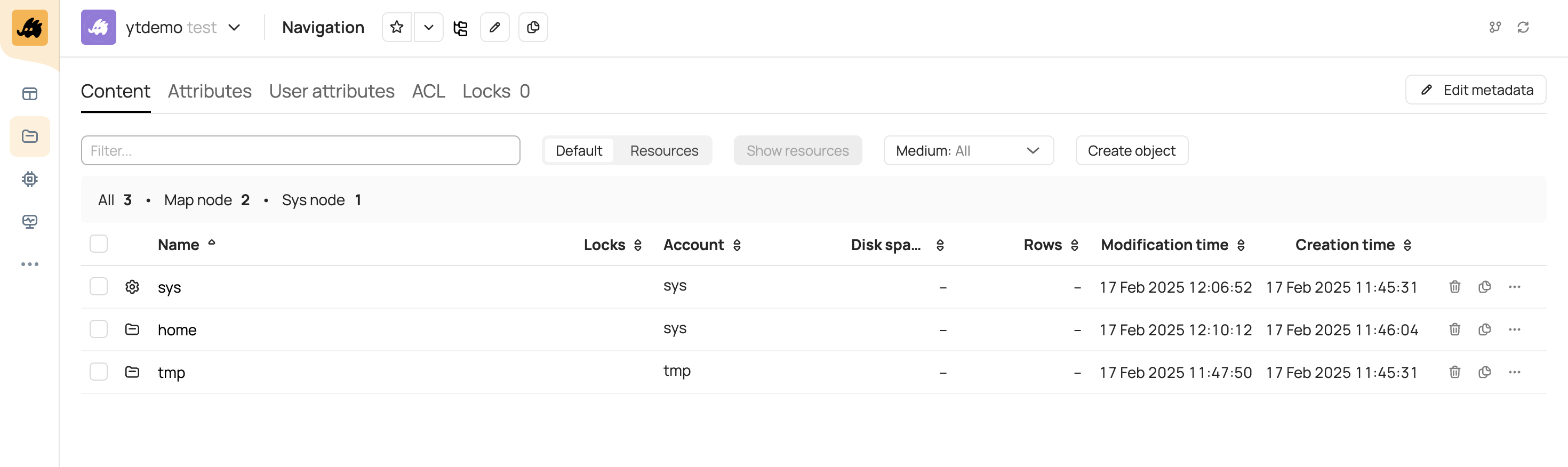

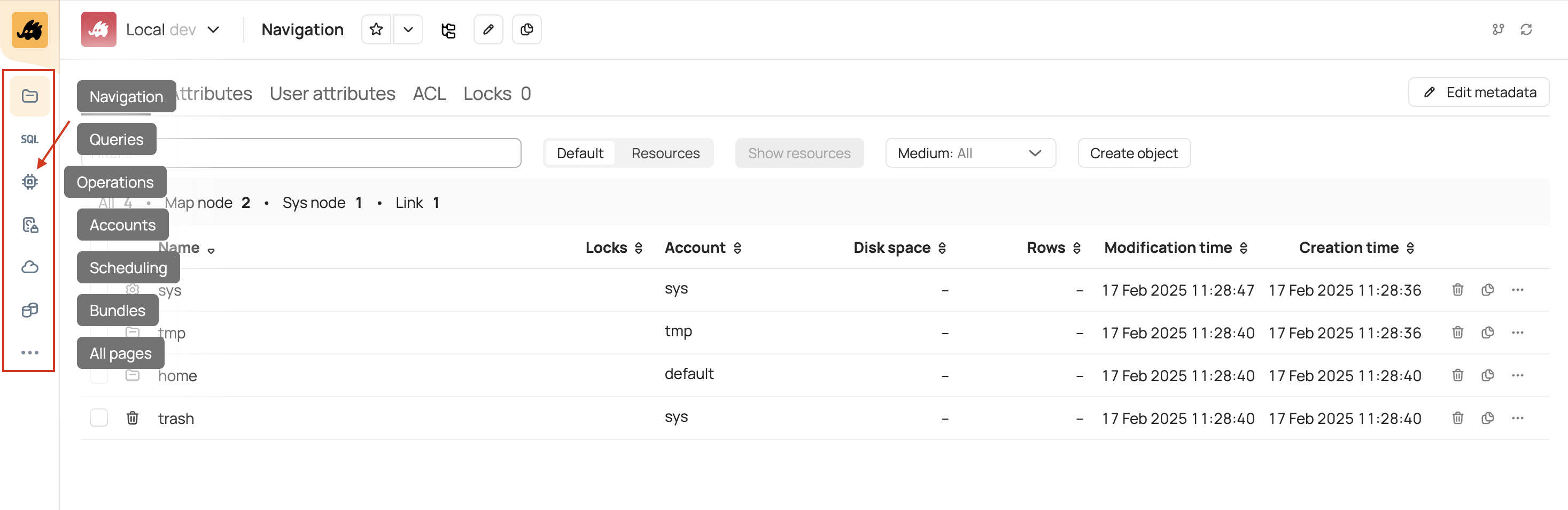

    • localhost:8001 is the web interface address. You can open it in your browser.
    • localhost:8000 is the cluster's backend address. You'll need to specify it as the proxy address to access the cluster via the CLI.
  4. To make sure everything works correctly, run the following command:

    $ docker ps | grep yt
    CONTAINER ID   IMAGE                           COMMAND                  CREATED         STATUS         PORTS              NAMES
    2c254e35037c   ghcr.io/ytsaurus/local:stable   "--fqdn localhost --…"   2 minutes ago   Up 2 minutes   80/tcp, 8002/tcp   yt.backend
    5235b5077b5b   ghcr.io/ytsaurus/ui:stable      ""                       2 minutes ago   Up 2 minutes   80/tcp             yt.frontend


    You should have two containers running:

    • yt.frontend: Handles processes related to the web interface.

    • yt.backend: Hosts YTsaurus cluster components.

      About YTsaurus components

      To find out what YTsaurus components are deployed on your system, check the list of processes running within the container:

      $ docker exec -it yt.backend /bin/bash
      $ ps -axo command | grep ytserver
      /mnt/rosetta /usr/bin/python3.8 /usr/local/bin/yt_local start --proxy-port 80 --local-cypress-dir /var/lib/yt/local-cypress --fqdn localhost --ytserver-all-path /usr/bin/ytserver-all --sync --fqdn localhost --proxy-config {coordinator={public_fqdn="localhost:8000"}} --rpc-proxy-count 0 --rpc-proxy-port 8002 --node-count 1 --queue-agent-count 1 --address-resolver-config {enable_ipv4=%true;enable_ipv6=%false;} --native-client-supported --id primary -c {name=query-tracker} -c {name=yql-agent;config={path="/usr/bin";count=1;artifacts_path="/usr/bin"}}
      /mnt/rosetta /primary/bin/ytserver-http-proxy --pdeathsig 9 --config /primary/configs/http-proxy-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /primary/bin/ytserver-master --pdeathsig 9 --config /primary/configs/master-0-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /primary/bin/ytserver-queue-agent --pdeathsig 9 --config /primary/configs/queue_agent-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /primary/bin/ytserver-node --pdeathsig 9 --config /primary/configs/node-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /primary/bin/ytserver-scheduler --pdeathsig 9 --config /primary/configs/scheduler-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /primary/bin/ytserver-controller-agent --pdeathsig 9 --config /primary/configs/controller_agent-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /primary/bin/ytserver-query-tracker --pdeathsig 9 --config /primary/configs/query_tracker-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /usr/bin/ytserver-yql-agent --pdeathsig 9 --config /primary/configs/yql_agent-0.yson --pdeathsig 15 --setsid
      /mnt/rosetta /usr/bin/grep --color=auto ytserver


      As you can see, we launched the following components:

      • The master server is responsible for fault-tolerant storage of the cluster's metadata. This includes information about system users, stored objects, and the location of the data itself.
      • The node combines the functionality of a data node and an exec node. It is responsible for data storage, dynamic tables, and job execution.
      • The scheduler plans data processing operations, such as Map and Reduce.
      • The controller agent schedules the jobs of individual operations.
      • The HTTP proxy is a server used for external communication.
      • The YQL agent is an execution engine for SQL-like queries.
      • The YTsaurus queue contains ordered dynamic tables.
      • Query Tracker is a component for running queries in different SQL dialects (YQL, QT, CHYT, SPYT).
  5. Done! Now YTsaurus is deployed and ready for use. You may proceed to the next step. After you finish working with the examples, remember to delete the cluster.

In this example, you'll deploy a local Kubernetes cluster consisting of a single node and run a YTsaurus cluster within it. We'll use Docker as the container execution engine.

Resource requirements

To successfully deploy YTsaurus on a Kubernetes cluster, the host machine must have:

  • At least 4 CPU cores.
  • At least 8 GB of RAM.
  • At least 30 GB of disk space.

To install YTsaurus in Minikube, follow these steps:

  1. Set up the environment
  2. Deploy a Kubernetes cluster
  3. Install cert-manager
  4. Install the YTsaurus operator
  5. Start the YTsaurus cluster
  6. Check network access

For a more detailed description of the installation process, watch this webinar.

1. Set up the environment

  • Install Docker:
    • If you're using Linux, install Docker Engine.
    • If you're using MacOS, install either Docker Desktop or Podman. Make sure that you have Rosetta 2 installed and enabled.
  • Install kubectl, a utility program for managing Kubernetes clusters.
  • Install Minikube, a utility program for running a simple Kubernetes cluster on a local machine.
  • Install Helm, a package manager for installing YTsaurus components in Kubernetes.

2. Deploy a Kubernetes cluster

$ minikube start  --cpus=6 --memory=8192 --driver=docker

# If you're using Podman
# minikube start --cpus=6 --memory=8192 --driver=podman

Once your Kubernetes cluster is deployed, the following command should execute successfully:

$ kubectl cluster-info
Kubernetes control plane is running at https://127.0.0.1:36399
CoreDNS is running at https://127.0.0.1:36399/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

3. Install cert-manager

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.1/cert-manager.yaml

Wait for the cert-manager-webhook pod to enter the Running state:

$ kubectl get pods -A
NAMESPACE        NAME                                        READY   STATUS      RESTARTS   AGE
cert-manager     cert-manager-7b5cdf866f-5lfth               1/1     Running     0          2m12s
cert-manager     cert-manager-cainjector-7c9788477c-xdp8l    1/1     Running     0          2m12s
cert-manager     cert-manager-webhook-764949f558-dldzp       1/1     Running     0          2m12s
kube-system      coredns-668d6bf9bc-774xg                    1/1     Running     0          2m57s
...

4. Install the YTsaurus operator

The YTsaurus operator is a program that manages YTsaurus execution in a Kubernetes cluster. The operator ensures that all YTsaurus components are up and running correctly.

Install the chart:

helm install ytsaurus oci://ghcr.io/ytsaurus/ytop-chart --version 0.20.0
If you see the error 'Internal error occurred: failed calling webhook "webhook.cert-manager.io"'

Check the status of the cert-manager-webhook pod:

$ kubectl get pods -A
NAMESPACE       NAME                                      READY   STATUS               RESTARTS   AGE
cert-manager    cert-manager-7b5cdf866f-5lfth             1/1     ContainerCreating    0          2m12s
cert-manager    cert-manager-cainjector-7c9788477c-xdp8l  1/1     ContainerCreating    0          2m12s
cert-manager    cert-manager-webhook-764949f558-dldzp     1/1     ContainerCreating    0          2m12s
...

If the pod's status is ContainerCreating, wait for its installation to complete and try restarting the command: helm install ytsaurus oci://ghcr.io/ytsaurus/ytop-chart --version 0.20.0.

If the pod's status is ImagePullBackOff, it means that the system can't download the required images. Most likely, this is caused by the network settings within Minikube. Click here for possible solutions.

Wait for the operator to enter the Running state:

$ kubectl get pod
NAME                                                      READY   STATUS     RESTARTS   AGE
ytsaurus-ytop-chart-controller-manager-5765c5f995-dntph   2/2     Running    0          7m57s

5. Start the YTsaurus cluster

curl -s https://raw.githubusercontent.com/ytsaurus/ytsaurus/refs/heads/main/yt/docs/code-examples/cluster-config/cluster_v1_local.yaml > cluster_v1_local.yaml
kubectl apply -f cluster_v1_local.yaml

It usually takes a few minutes for a YTsaurus cluster to start. If everything is successful, the list of running pods will look like this:

$ kubectl get pod
NAME                                                      READY   STATUS              RESTARTS   AGE
ca-0                                                      1/1     Running     0          8m43s
dnd-0                                                     1/1     Running     0          8m44s
dnd-1                                                     1/1     Running     0          8m44s
dnd-2                                                     1/1     Running     0          8m44s
ds-0                                                      1/1     Running     0          11m
end-0                                                     1/1     Running     0          8m43s
hp-0                                                      1/1     Running     0          8m44s
hp-control-0                                              1/1     Running     0          8m44s
ms-0                                                      1/1     Running     0          11m
rp-0                                                      1/1     Running     0          8m43s
rp-heavy-0                                                1/1     Running     0          8m43s
sch-0                                                     1/1     Running     0          8m39s
strawberry-controller-679786577b-4p5kz                    1/1     Running     0          7m17s
yt-client-init-job-user-ljfqf                             1/1     Running     0          8m39s
yt-master-init-job-default-hdnfm                          1/1     Running     0          9m23s
yt-master-init-job-enablerealchunks-575hk                 1/1     Running     0          8m50s
yt-strawberry-controller-init-job-cluster-l5gns           1/1     Running     0          8m17s
yt-strawberry-controller-init-job-user-nn9lk              1/1     Running     0          8m34s
yt-ui-init-job-default-6w5zv                              1/1     Running     0          8m43s
ytsaurus-ui-deployment-7b469d5cc8-596sf                   1/1     Running     0          8m35s
ytsaurus-ytop-chart-controller-manager-859b7bbddf-jc5sv   2/2     Running     0          14m
If pods are stuck in the Pending status

Most likely, this is due to insufficient resources. Delete the Minikube cluster and try creating it again, this time allocating more resources at launch.

$ kubectl delete -f cluster_v1_local.yaml
$ minikube delete
$ minikube start --cpus=8 --memory=10000 --driver=docker

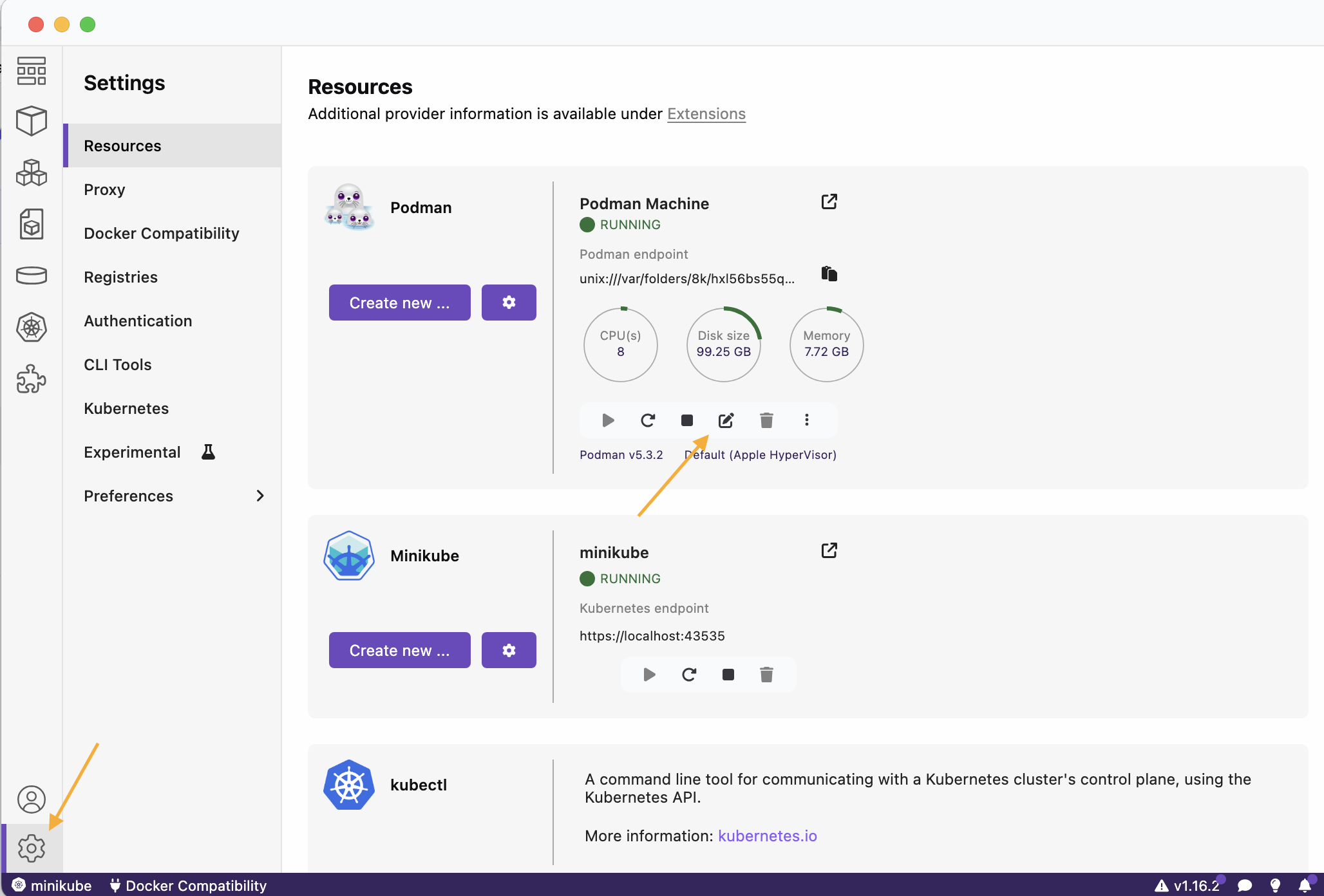

If the specified resources exceed the limit set in your Podman configurations, increase this limit in the settings section.

6. Check network access

To check the address at which the YTsaurus cluster will be available, run the following commands:

# Network access to the web interface
$ minikube service ytsaurus-ui --url
http://192.168.49.2:30539

# Network access to the proxy
$ minikube service http-proxies-lb --url
http://192.168.49.2:30228

The web interface is available at the first link. To log in, use:

Login: admin
Password: password
How to access the web interface if the cluster is deployed on a remote host
  1. On the remote host, run the command:

    $ minikube service http-proxies-lb --url
    <HOST>:<PORT>


    You'll need the <HOST> and <PORT> values for the next step.

  2. On the local host, start a new terminal session and run the following:

    ssh -fnNT -L 127.0.0.1:8080:<HOST>:<PORT> <VM>


    The web interface will be available at 127.0.0.1:8080.

You can use the second link to connect to the cluster from the command line. For more information, see the examples section below.

Done!

YTsaurus is now deployed and ready for use. You may proceed to the next step. After you finish working with the examples, remember to delete the cluster.

Installing the YTsaurus CLI

The most convenient way to interact with the YTsaurus system is through the console. The YTsaurus CLI utility isn't installed as part of the cluster deployment process. You need to install it on your system separately.

First, install the pip3 package manager if you don't already have it installed:

sudo apt update
sudo apt install python3-pip

Make sure that everything worked correctly:

$ pip3 --version
pip 22.0.2 from ...

Install the ytsaurus-client utility:

pip3 install --user ytsaurus-client

Add the path to $HOME/.local/bin to the PATH variable:

export PATH="$PATH:$HOME/.local/bin"
How to save this change after system reboot
echo 'export PATH="$PATH:$HOME/.local/bin"' >> ~/.bashrc # This command appends the string to the end of the ~/.bashrc file
source ~/.bashrc  # Apply the changes now

Check if the YTsaurus CLI was successfully installed:

$ yt --version
Version: YT wrapper 0.13.20

For more information about working with the CLI, watch the introductory webinar (the timestamp is 24:30).

Executing examples

In this guide, you'll create a table, write data to it, and run a simple SELECT query. The section concludes with a more complex example: running a MapReduce operation.

Set environment variables

You'll need this to access the cluster via the CLI for the examples that follow.

Docker
  • Docker
  • Minikube
export YT_PROXY=localhost:8000
export YT_PROXY=`minikube service http-proxies-lb --url`
# Disable automatic proxy server detection YTsaurus
export YT_CONFIG_PATCHES='{proxy={enable_proxy_discovery=%false}}'
export YT_TOKEN=password

Warning

Here, the token is set in an environment variable. This is done intentionally for the sake of simplicity and clarity of the example. Avoid this practice in real-world scenarios: YTsaurus provides dedicated commands for managing tokens. For more information, see Authentication.

Create a table

In YTsaurus, all data is stored in tables. Let's create one!

$ yt create table //home/input_table --attributes '{schema = [{name = id; type = int64}; {name = text; type = string}]}'
> 16-64ca-10191-47007b7d

The value 16-64ca-10191-47007b7d is the ID of the created Cypress node. Node IDs are useful when working with transactions in YTsaurus. You won't need these IDs in this example.

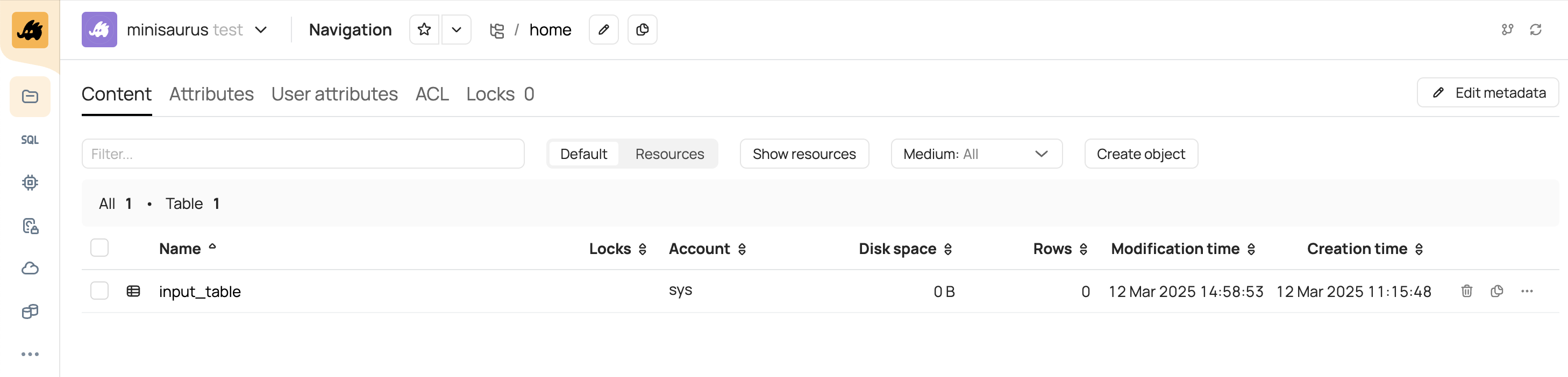

You can view the created table in the web interface. In your web browser, open the address that you received when starting the cluster, go to the Navigation tab, and click the created table:

Write data

Now write some data to the table by calling the write-table command:

echo '{ "id": 0, "text": "Hello" } { "id": 1, "text": "World!" }' | yt write-table //home/input_table --format json

Read the result

To verify that the data has indeed been written to the table, run the following command:

$ yt read-table //home/input_table --format json
{"id":0,"text":"Hello"}
{"id":1,"text":"World!"}

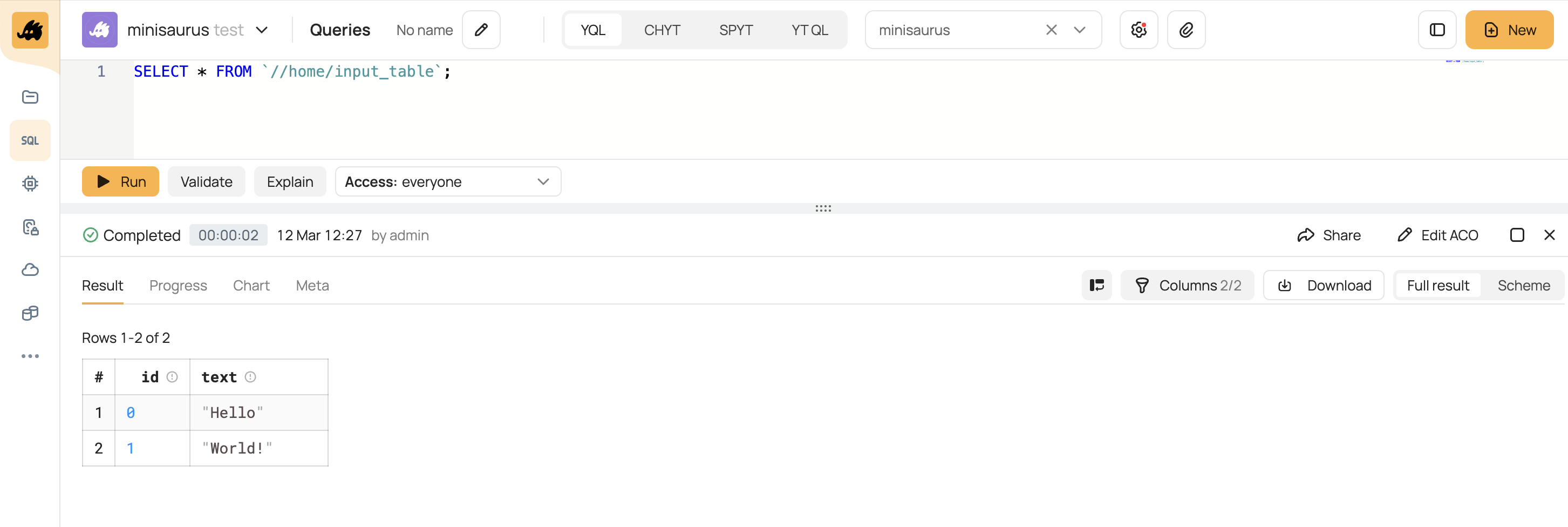

Another way to read a table is by running a SELECT query in the web interface. To do this, go to the Queries tab and enter the following query:

SELECT * FROM `//home/input_table`;

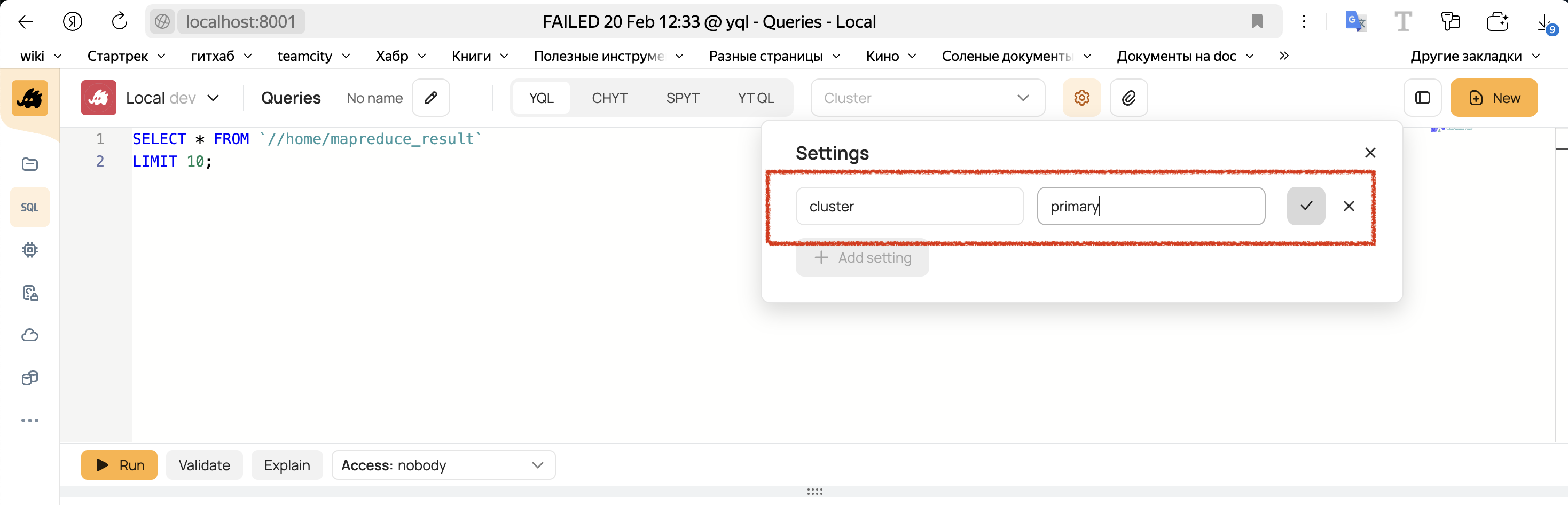

I get the error 'Attribute "cluster_name" is not found'

If you deployed your YTsaurus cluster via Docker, follow these steps:

  1. In the web interface, go to the Queries tab.

  2. Click the settings icon at the top right of the page. Delete your current Settings.

  3. Click Add setting and specify the field values "cluster" and "primary", respectively. Click the checkmark.

If you deployed your YTsaurus cluster via Minikube, please let us know about this error in the community chat.

Advanced example: running MapReduce

This section explains how to run a MapReduce operation, using a Word Count problem as an example.

  1. Prepare the data
  2. Create a table and write the data to it
  3. Run MapReduce
  4. Read the result
How MapReduce works

For a Word Count problem, the MapReduce operation is executed according to the following algorithm:

  1. The source text is split into strings, with each string written to the table as a separate record.
  2. A Map operation is performed for each record, emitting a pair of columns for each word: (<word>, 1).
  3. The output of the previous step is sorted by the first column.
  4. A Reduce operation is performed on the first column, summing the values from the second column. The resulting output is a set of pairs: (<word>, <number of mentions of the word>).

1. Prepare the data

Download the source text and convert it into a tab-separated format:

curl -s https://raw.githubusercontent.com/ytsaurus/ytsaurus/refs/heads/main/yt/docs/code-examples/source/moem.txt > source.txt
awk '{gsub(/\t/, "\\t"); print "lineno="NR"\ttext="$0}' source.txt > source.tsv
About the tab-separated format
  • Table rows are separated by line breaks, \n.
  • Columns are separated by tabs, \t.
  • Column names and their corresponding contents are separated by an equals sign =.

For example, the string lineno=1\tsize=6\tvalue=foobar describes a row with columns lineno, size, and value, which contain the values 1, 6, and foobar, respectively. Tab characters are escaped.

Prepare the source code of the program that will run the MapReduce operation. Download the Python 3 script and save it locally:

curl -s https://raw.githubusercontent.com/ytsaurus/ytsaurus/refs/heads/main/yt/docs/code-examples/python/word-count.py > word-count.py

2. Create a table

Create two tables, one for the source data and another for the results of executing the MapReduce operation:

yt create table //home/mapreduce_input --attributes '{schema = [{name = lineno; type = string}; {name = text; type = string}]}'
yt create table //home/mapreduce_result --attributes '{schema = [{name = count; type = string}; {name = word; type = string}]}'

If you get 'Cannot determine backend type: either driver config or proxy url should be specified,' set the environment variable YT_PROXY.

Now write some data to the source table by calling the write-table command:

cat source.tsv | yt write-table //home/mapreduce_input --format dsv

To verify that the data has been written to the table, use the read-table command. The half-interval specified in the square brackets indicates that we want to get the first six rows of the table:

yt read-table '//home/mapreduce_input[:#6]' --format dsv

3. Run MapReduce

Run the MapReduce operation using the map-reduce command:

yt map-reduce --mapper "python3 word-count.py map" --reducer "python3 word-count.py reduce" --map-local-file word-count.py --reduce-local-file word-count.py --src //home/mapreduce_input --dst //home/mapreduce_result --reduce-by word --format dsv

You can track the status of a running operation in the Operations section of the web interface.

Where to find this section

4. Read the result

Now you can read the resulting table by executing a simple SELECT query. In the web interface, go to the Queries tab and enter the following query:

SELECT * FROM `//home/mapreduce_result`
ORDER BY count
LIMIT 30;

Stopping a cluster

Docker
  • Docker
  • Minikube

To stop a YTsaurus cluster, shut down the yt.frontend and yt.backend containers. To do this, run the command:

./run_local_cluster.sh --stop

This command stops (executes docker stop) and then removes (docker rm) the containers.

  1. Delete the YTsaurus cluster:

    kubectl delete -f cluster_v1_local.yaml

  2. Uninstall the operator:

    helm uninstall ytsaurus

  3. Stop the Kubernetes cluster:

    minikube stop

  4. Delete the Kubernetes cluster:

    minikube delete

  5. Clear the Minikube cache:

    rm -rf ~/.minikube/

  6. If you used Podman:

    podman rm -f minikube
    podman volume rm minikube


Demo Stand

This is an online demonstration of the capabilities offered by YTsaurus. To get access to the demo cluster, fill out this form. After that, an email with information for accessing the cluster will be sent to your specified address.

The demo stand features several environments for interacting with YTsaurus:

Jupyter Notebook

The notebook provides numerous examples for working with YTsaurus, including operations for creating tables, uploading data, and using CHYT, SPYT, and YQL, as well as SDK examples. For an overview of all available examples, see About YTsaurus demo, the notebook home page.

A link to a deployed Jupyter Notebook will be included in the email.

Web interface

Here you can test out the features of the YTsaurus web interface: explore the file system, see the list of pools, and run queries in Query Tracker.

A link to the web interface of a deployed cluster will be included in the email.

For more information about using the web interface, watch the introductory webinar (the timestamp is 15:30).

Troubleshooting

If you're having trouble getting something to work, don't hesitate to ask your questions in our community Telegram chat. We'll do our best to help you.

To share your suggestions or comments on the documentation, create an issue in the project's GitHub repository. Your feedback is always welcome; it helps us make the documentation more informative.
