Advanced settings configuration

This section describes how to work with advanced clique settings. In the web interface, they are located in the Advanced settings section. The complete list of advanced settings is provided in the Advanced settings section.

Warning

The settings mentioned in this section are intended for advanced users only. If you’re not sure you need them, we recommend keeping the default values.

Advanced settings include:

Query settings

The parameters in the Query settings section are a subset of ClickHouse session settings that will be applied to all queries within the clique.

To change query behavior, override the default parameter values using:

  1. In the ClickHouse documentation, find the required settings and copy their names.

  2. Open the clique interface as described in the How to open the clique interface section.

  3. Click edit speclet in upper-right corner of the Action buttons block or the button Edit speclet on the Speclet tab in the Tab panel.

  4. Select the Advanced section on the left.

  5. Find the Query settings section.

  6. In the Use JSON syntax field, enter parameters and their values in JSON syntax, as key: value pairs enclosed in curly braces { }. For example:

    {
    "max_execution_time": 200000,
    "max_insert_threads": 32,
    "max_threads": 32,
    "parallel_distributed_insert_select": 2
}

  7. To apply the changes, click Confirm.

  1. Install the CHYT CLI as part of the ytsaurus-client package, if you haven’t done so already.

  2. Save the proxy address to an environment variable. This allows you to avoid specifying the YTsaurus cluster using the --proxy argument in every subsequent command.

    export YT_PROXY=<cluster_name>

  3. Set an environment variable with the controller address:

    export CHYT_CTL_ADDRESS=<address>

    , where <address> is the controller address. For example, the address for a demo cluster looks like this: https://strawberry-XXXXXXXX.demo.ytsaurus.tech.
    You can get the controller address from the controller field in the output of the following command:

    yt get //sys/strawberry/chyt/<alias>/@strawberry_info_state

  4. Save the cluster name to an environment variable:

    export CLUSTER_NAME=<cluster_name>

    , where <cluster_name> is the cluster name. For example, the demo cluster name is ytdemo.

  5. In the ClickHouse documentation, find the required settings and copy their names.

  6. Set the required parameters using the query_settings option. For example:

    yt clickhouse ctl set-option query_settings "{\"max_execution_time\": 200000,\"max_insert_threads\": 32,\"max_threads\": 32,\"parallel_distributed_insert_select\": 2}"

ClickHouse config

The Clickhouse config setting is used to manage the ClickHouse part configuration. Configure it to match the standard ClickHouse XML configuration.

The rules for converting a ClickHouse XML configuration to a CHYT YSON configuration are as follows:

  • Any non‑repeating node in the ClickHouse configuration is a dictionary (map).
  • A repeating node is represented as a list (list).

Example of converting a sample XML configuration to a YSON configuration

XML

YSON


<foo>42</foo>
<bar>qwe</bar>
<baz>
    <quux>3.14</quux>
</baz>
<baz></baz>
<baz>hi!</baz>

{
    foo = 42;
    bar = "qwe";
    baz = [
        {quux = 3.14};
        {};
        "hi!";
    ];
}

ClickHouse config options that may be useful in CHYT

The main option is dictionaries — the external dictionaries configuration. The value must be a list of dictionary configurations.
Each dictionary is configured as a map with the following fields, which preserve the meaning of the original ClickHouse configuration:

  • name — the name of the external dictionary;
  • source — data source for the external dictionary;
  • layout — representation of the external dictionary in the instance memory;
  • structure — data schema stored in the dictionary;
  • lifetime — lifetime of the dictionary.

Other options can be found in the ClickHouse config in the repository.

Note

The ClickHouse config also has a settings option that contains the settings described in the Query settings section. Thus, query settings can also be defined inside the ClickHouse config.

How to change the ClickHouse configuration

  1. Open the clique interface as described in the How to open the clique interface section.

  2. Click edit speclet in the upper-right corner of the Action buttons block or the button Edit speclet on the Speclet tab in the Tab panel.

  3. Select the Advanced section on the left.

  4. Find the Clickhouse config section.

  5. In the Use JSON syntax field, enter the parameters and their values as a JSON configuration.
    Example of configuring a simple dictionary and setting Query settings in the settings part:

    {
    "settings": {
        "max_execution_time": 30
    },
    "dictionaries": [
        {
            "name": "dict",
            "layout": {"flat": {}},
            "structure": {
                "id": {"name": "key"},
                "attribute": [
                    {"name": "value_str", "type": "String", "null_value": "n/a"},
                    {"name": "value_i64", "type": "Int64", "null_value": 42}
                ]
            },
            "lifetime": 0,
            "source": {"yt": {"path": "//home/user/table"}}
        }
    ]
}

  6. To apply the changes, click Confirm.

  1. Install the CHYT CLI as part of the ytsaurus-client package, if you haven’t done so already.

  2. Save the proxy address to an environment variable. This allows you to avoid specifying the YTsaurus cluster using the --proxy argument in every subsequent command.

    export YT_PROXY=<cluster_name>

  3. Set an environment variable with the controller address:

    export CHYT_CTL_ADDRESS=<address>

    , where <address> is the controller address. For example, the address for a demo cluster looks like this: https://strawberry-XXXXXXXX.demo.ytsaurus.tech.
    You can get the controller address from the controller field in the output of the following command:

    yt get //sys/strawberry/chyt/<alias>/@strawberry_info_state

  4. Save the cluster name to an environment variable:

    export CLUSTER_NAME=<cluster_name>

    , where <cluster_name> is the cluster name. For example, the demo cluster name is ytdemo.

  5. Find the required parameters in the list of ClickHouse settings and copy their names.

  6. Set the required parameters using the clickhouse_config option. For example:

    yt clickhouse ctl set-option clickhouse_config "{ ... some JSON params}"

YT config

The YT part of the instance configuration is set in the yt_config option. This option lets you specify advanced settings that aren’t exposed as separate speclet options.

You can view the list of available YT configuration parameters in the Instance configuration section.

How to change the YT configuration

  1. Open the clique interface as described in the How to open the clique interface section.

  2. Click edit speclet in the upper-right corner of the Action buttons block or the button Edit speclet on the Speclet tab in the Tab panel.

  3. Select the Advanced section on the left.

  4. Find the YT config section.

  5. In the Use JSON syntax field, enter the parameters and their values as a JSON configuration, for example:

    {
    "subquery": {
        "max_data_weight_per_subquery": 12942417591810
    }
}

  6. To apply the changes, click Confirm.

  1. Install the CHYT CLI as part of the ytsaurus-client package if you haven’t done so already.

  2. Save the proxy address to an environment variable. This allows you to avoid specifying the YTsaurus cluster using the --proxy argument in every subsequent command.

    export YT_PROXY=<cluster_name>

  3. Set an environment variable with the controller address:

    export CHYT_CTL_ADDRESS=<address>

    where <address> is the controller address. For example, the address for a demo cluster looks like this: https://strawberry-XXXXXXXX.demo.ytsaurus.tech.
    You can get the controller address from the controller field in the output of the following command:

    yt get //sys/strawberry/chyt/<alias>/@strawberry_info_state

  4. Save the cluster name to an environment variable:

    export CLUSTER_NAME=<cluster_name>

    where <cluster_name> is the cluster name. For example, the name of a demo cluster is ytdemo.

  5. Set the required parameters using the yt_config option. For example:

    yt clickhouse ctl set-option yt_config "{\"subquery\":{\"max_data_weight_per_subquery\": 12942417591810}}"

Instance memory

To fine‑tune memory allocation, it’s helpful to understand the memory allocation scheme in a CHYT instance, learn which parameters control each memory amount, and how to change them.

Note

In memory management terms:

  • Watermark — the amount of memory measured from the upper limit of the allocated memory. When this limit is reached, the CHYT instance initiates shutdown according to one of the predefined scenarios.
  • Window — a time interval (15 minutes by default) during which the average value of watermark lower boundary exceedances is calculated. This helps to ignore random memory spikes.
  • RSS (Resident Set Size) — the actual amount of RAM used by the process.
  • OOM (out of memory) — memory exhaustion.

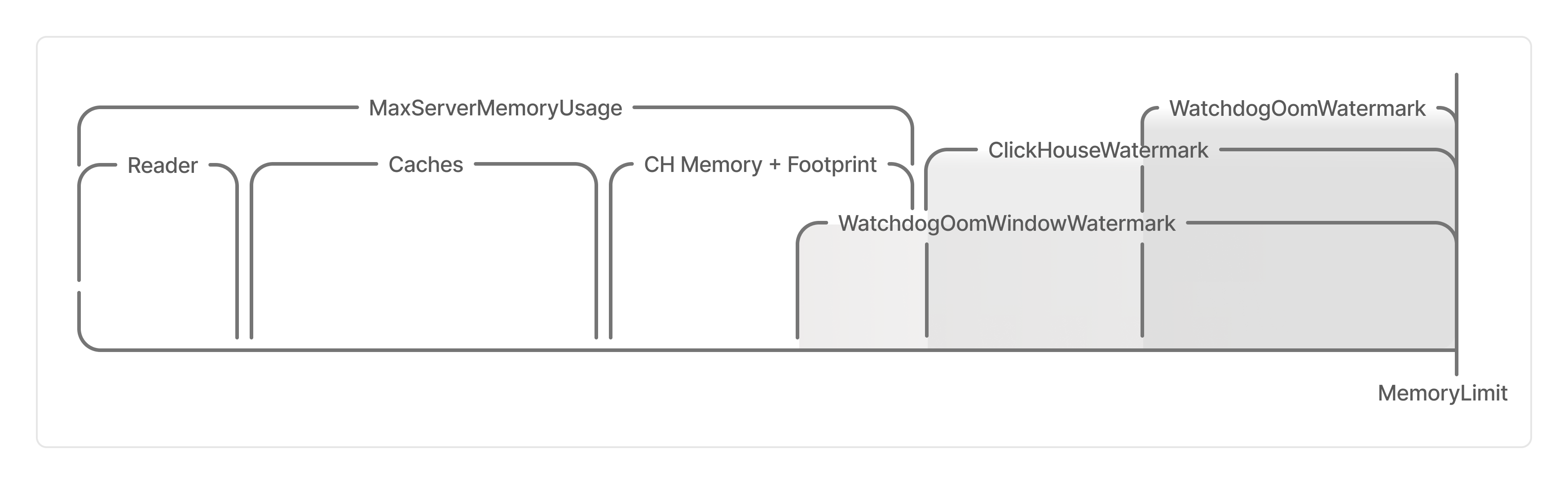

Memory allocation of a CHYT instance

The diagram shows how memory is allocated within a CHYT instance: which amounts make up the total limit and which thresholds determine the system’s behavior when memory is low.

memory

Below is a description of each parameter in the scheme — the memory amounts included in the instance’s total limit and the thresholds:

  • MaxServerMemoryUsage — the total memory usage limit within a CHYT instance, the sum of the following amounts:

    • Reader — the amount of memory allocated for reader caches to pre‑load and speed up data reading.

    • Caches — a schematic designation of the memory amount for caches, which includes:

      • CompressedBlockCache — a cache for compressed data blocks. It holds large amounts because data is stored in compressed form (default behavior), but it takes time to decompress again. It’s used when re‑reading large data blocks.
      • UncompressedBlockCache — a cache for uncompressed data blocks. It’s useful when there are many sequential queries to the same data because it saves resources not only for reading but also for decompressing data.
      • ChunkMetaCache — a cache for chunk metadata. Reading chunk metadata precedes any read operation. It’s useful for re‑reading data and saves resources by avoiding repeated retrieval of the same metadata.

    • CH Memory — a special memory amount reserved for ClickHouse’s internal needs.

    • Footprint — a special reserve “buffer” of memory that allows the process to exceed thresholds without collectively exceeding critical values.

  • MemoryLimit — a conditional hard limit on the RSS (memory usage) of a CHYT instance, used for the WatchdogOomWatermark and WatchdogOomWindowWatermark categories.

  • WatchdogOomWatermark — an additional memory amount used in checks to see if an OOM has occurred: the sum of the current RSS value and WatchdogOomWatermark is compared to the specified MemoryLimit.

  • WatchdogOomWindowWatermark — an additional memory amount used in OOM checks. The check follows this algorithm:

    • The average RSS value is calculated over the Window time interval (15 minutes by default).
    • WatchdogOomWindowWatermark is added to the calculated value.
    • The sum is compared to the specified MemoryLimit.

  • ClickHouseWatermark — an additional memory amount to separate MaxServerMemoryUsage from the overall MemoryLimit.

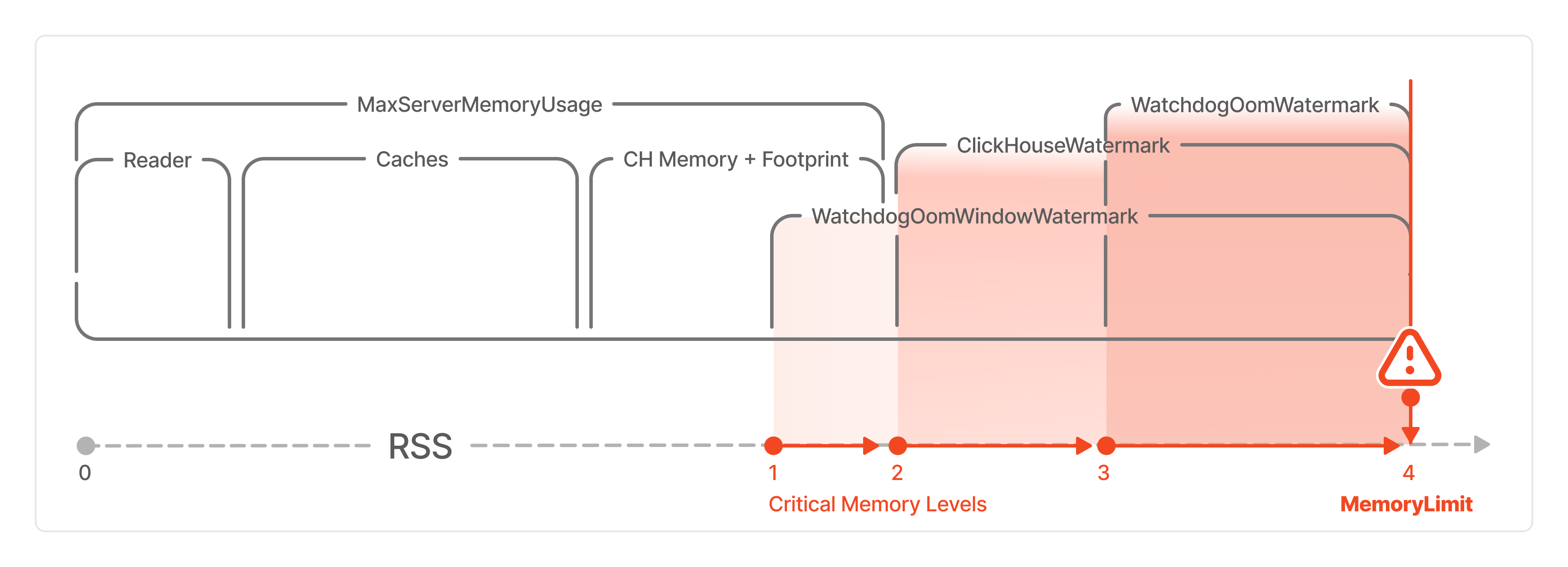

Critical RSS (memory usage) value ranges

The RSS scale in the memory allocation diagram marks critical value ranges with numbers — when these are reached, the system terminates the process.

memory

If the process’s physical RAM amount reaches the following ranges:

  • 1 (the average RSS value over more than 15 minutes exceeds the lower boundary of the WatchdogOomWindowWatermark range) — the instance performs a graceful shutdown: it stops accepting new queries, waits for active ones to complete, and then shuts down.
  • 2 (the average RSS exceeds the lower threshold of ClickHouseWatermark) — ClickHouse stops allocating memory for any operations, and the system reports a memory shortage.
  • 3 (RSS exceeds the lower boundary of the WatchdogOomWatermark range) — the instance shuts down abruptly, and active queries fail with an error.
  • 4 (RSS exceeds MemoryLimit) — YTsaurus deletes the instance.

How to set memory thresholds

We recommend using the web interface:

  1. Open the clique interface as described in the How to open the clique interface section.

  2. Click edit speclet in the upper-right corner of the Action buttons block or the button Edit speclet on the Speclet tab in the Tab panel.

  3. Select the Advanced section on the left.

  4. Find the Instance memory section.

  5. In the Use JSON syntax field, enter the parameters and their values as a JSON configuration. You can use the following configuration example as a template:

    {
    "clickhouse": 10500000000,
    "chunk_meta_cache": 100000000,
    "compressed_cache": 4000000000,
    "uncompressed_cache": null,
    "reader": 500000000,
    "clickhouse_watermark": 10,
    "watchdog_oom_watermark": 0,
    "watchdog_oom_window_watermark": 0,
    "footprint": 2000000000
}

  6. To apply the changes, click Confirm.

Important

Do not set the following options simultaneously:

  • RAM size on the Resources tab in the Instance Total Memory field.
  • Memory allocation configuration on the Advanced tab in the Instance memory field.

If you set both options at once, the controller cannot determine which one to apply. The clique will not start, and the system will output an error:

Failed to start
chyt: instance_memory and instance_total_memory cannot be specified simultaneously.

Sticky query distribution

Advanced options Enable sticky query distribution and Query sticky group size control query distribution across instances with caching in mind.

If queries repeat at a given interval, it’s useful to cache their results. The query cache is stored on the instance where it was executed.

By default, queries are distributed across instances at random. To redirect queries to instances where they were previously executed and where their cache is stored, use the following settings:

  • Enable sticky query distribution — this option enables query distribution across instances based on the hashes of these queries.
  • Query sticky group size — this option sets the size of the group of instances selected deterministically by the query hash. A coordinator for executing the query is chosen uniformly from among these instances. This is only relevant when the Enable sticky query distribution option is enabled.

How to enable redirecting queries to instances with cache

We recommend using the web interface:

  1. Open the clique interface as described in the How to open the clique interface section.
  2. Click edit speclet in the upper-right corner of the Action buttons block or the button Edit speclet on the Speclet tab in the Tab panel.
  3. Select the Advanced section on the left.
  4. Find the Enable sticky query distribution option and enable it.
  5. Find the Query sticky group size option and enter a number in the field — the size of the instance group. The query will be randomly directed by the coordinator to one of the instances in the group.
  6. To apply the changes, click Confirm.
