Query language
This section describes an SQL language dialect that enables you to read and transform data on the system side.
Overview
This feature is supported only for dynamic tables.
Note
An SQL language dialect is not a full-fledged implementation of the SQL language. This query language should be considered an extended data-reading operation, allowing some of the data processing work to be done on the server side.
Attention!

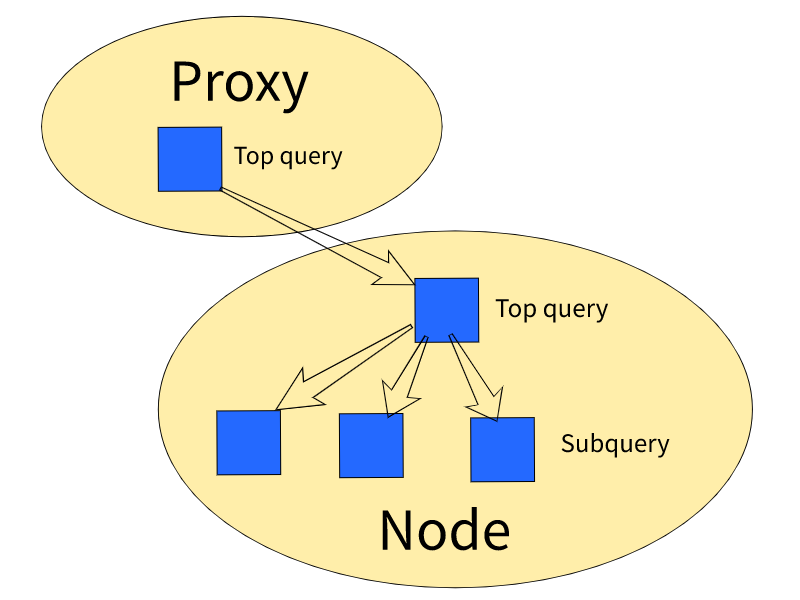

The feature is not a replacement of MapReduce operations. The query execution engine has no scheduler, and specifying a heavy query with full scan can lead to cluster degradation. The YTsaurus service team is working to improve the reliability of processing large queries, but there are no plans to develop the described SQL language dialect as a replacement for MapReduce.
Examples
Reading from the table:
yt select-rows "* FROM [//mytable] LIMIT 10" --format json
Counting the number of rows:
yt select-rows "SUM(1) FROM [//mytable] GROUP BY 1" --format json
Queries with grouping:
yt select-rows "day, MIN(price), MAX(price) FROM [//mytable] WHERE is_ok = 1 GROUP BY timestamp / 86400 AS day" --format json
yt select-rows "item_id FROM [//mytable] WHERE (user_id, order_id) IN ((1, 1), (1, 2), (10, 10), (10, 11))" --format json
Query syntax
* | <select-expr-1> [AS <select-alias-1>], <select-expr-2> [AS <select-alias-2>], ...
FROM [//path/to/table] [JOIN [//path/to/rhs1] USING <column-1>, <column-2>, ...]
[WHERE <predicate-expr>]
[GROUP BY <group-by-expr-1> [AS <group-by-alias-1>], <group-by-expr-2> [AS <group-by-alias-2], ...]
[ORDER BY <column-1>, <column-2>, ...]
[OFFSET <n>]
[LIMIT <m>]
In general, the row order in the query output is not defined; however such guarantees are provided for ORDER BY and LIMIT.
SELECT section
SELECT syntax:
* | <select-expr-1> [AS <select-alias-1>], <select-expr-2> [AS <select-alias-2>], ...
Defines the query output columns. If there's an asterisk (*
), all input columns of the main table will be used as output columns. Alternatively, you can specify random expressions for the calculation. For queries without grouping, all columns of the source tables can be in the expression. In case of queries with grouping, only the key columns used for grouping or aggregates can be in the expression.
FROM section ... JOIN
FROM syntax ... JOIN:
FROM [//path/to/table] [[AS] <table-alias>] [WITH INDEX [//path/to/index/table]] [[LEFT] JOIN [//path/to/dict-1] [[AS] <table-alias>] (ON <expression> = <foreign-expression> | USING <column-1>, <column-2>, ...) [AND <predicate>]] ...
Defines the query data sources. The table immediately following FROM is considered the primary table and is used when coordinating query execution (provided the query does not contain the WITH INDEX keyword). It is also allowable to specify auxiliary reference tables in the JOIN section. The reference tables are connected to the main table if the specified key matches exactly. Without specifying the LEFT keyword, INNER JOIN will be executed. You can additionally specify an expression for reference table filtering which will be executed when reading data before join with the main table is executed.
When the query contains the WITH INDEX keyword, the index table will be used for coordination, and the table following FROM will be connected to it by common columns. See also secondary indexes.
To combine tables across multiple columns, a tuple must be written in the ON condition.
FROM [//x] AS x JOIN [//y] AS y ON (x.a, x.b) = (y.a, y.b)
It is allowed to write expressions in the JOIN condition:
ON (if(is_null(x.a), 0, x.a), x.b) = (y.a, y.b)
For more information about JOINS, their features, and limitations, see the JOINS section.
WHERE section
WHERE syntax:
WHERE <predicate-expr>
Defines the primary data filter.
GROUP BY section
GROUP BY syntax:
GROUP BY <group-by-expr-1> [AS <group-by-alias-1>], <group-by-expr-2> [AS <group-by-alias-2], ...
Defines data grouping by key.
HAVING section
HAVING syntax:
HAVING <predicate-expr>
Defines the filtering condition after grouping.
WITH TOTALS modifier
Used in conjunction with grouping and adds an extra row to the result, with NULL
values in the grouping keys and total aggregates by grouped data in the values. The row added by the summary aggregate is not processed in ORDER BY ... LIMIT. When the HAVING section is used, the final aggregates can be counted both before and after filtering. The order in which the rows with the resulting aggregates are arranged in the resulting row set is unspecified. The added row can be either the first or the last one. It can be distinguished by a NULL
key.
WITH TOTALS syntax:
GROUP BY ... WITH TOTALS
GROUP BY ... WITH TOTALS HAVING ...
GROUP BY ... HAVING ... WITH TOTALS
ORDER BY section
ORDER BY syntax:
ORDER BY <order-by-expr-1> [ASC|DESC], <order-by-expr-2> [ASC|DESC], ...
Defines the ordering of the output row set by the specified expressions. The default sorting order is ascending (ASC). The DESC keyword is specified for descending sorting. Sorting is applied after grouping, so only the key grouping columns or the counted aggregates can be in the expressions. The sorting is partial, i.e. only N smallest rows are returned as a result (the N parameter is specified in the LIMIT section).
OFFSET section
OFFSET syntax:
OFFSET <n>
Specifies the number of skipped rows from the output set of rows.
There can be no effective implementation of OFFSET in the query language under the current data storage schema. The OFFSET N LIMIT M query will read N + M rows. To implement this effectively, there must be an index from the row number to the key.
The proper way to perform paginated output is to make LIMIT queries, but instead of using OFFSET, remember the last key values ("last_key = (key_column1, key_column2, ...)") of the current query result and send the next query with the condition "where (key_column1, key_column2, ...) > last_key".
LIMIT section
LIMIT syntax
LIMIT <m>
Defines the size of the output row set. If there is an ORDER BY section, it sets a limit on the size of the heap. Otherwise, it sets a limit on the order and amount of scanned data. If the query has a LIMIT section, the data is scanned sequentially by the primary key until the target size is reached. In this case, the order of output rows is defined unambiguously.
Note
When using grouping with a limit (without ORDER BY), the data will be read in the order of the primary table key.
If there are no aggregate columns, the query will end once the required set of grouped rows is accumulated. If there are aggregate columns, extra grouping will be performed for the keys accumulated in the number specified in LIMIT.
When using LIMIT without ORDER BY, please note that LIMIT will be applied to the previous operator. For example, if you use GROUP BY ... WITH TOTALS and LIMIT, then the final aggregates will be calculated from the data that fits within the limit. Data above the limit will not even be read. If ORDER BY is added, LIMIT will affect it and GROUP BY will process all read data. Respectively, TOTALS will be calculated from the larger data set.
Expression syntax
<literal>
<identifier>
Arithmetic operators:
<expr> + <expr>
<expr> - <expr>
<expr> * <expr>
<expr> / <expr>
<expr> % <expr>
Bitwise operators:
<expr> | <expr>
<expr> & <expr>
<expr> >> <expr>
<expr> << <expr>
Logical operators:
<expr> AND <expr>
<expr> OR <expr>
NOT <expr>
Comparison operators:
<expr> = <expr>
<expr> != <expr>
<expr> < <expr>
<expr> <= <expr>
<expr> > <expr>
<expr> >= <expr>
<expr> BETWEEN <literal> AND <literal>
<expr> BETWEEN (<literal> AND <literal>, ...)
IN operator:
<expr> IN (<literal>, ...)
Functions:
FN(<expr>, ...)
Priorities:
unary + - ~
binary * / %
binary + -
binary >> <<
binary &
binary |
binary < <= > >= IN BETWEEN
binary =
unary NOT
binary AND
binary OR
Each expression has its type: int64
, uint64
, boolean
, double
, string
, or any
. The typification of expressions is strict. If a typification error occurs, query execution stops and an error is returned to the user.
Arithmetic operators take numeric types (int64
, uint64
, double
) as input and return a value of the same type.
Logical operators take and return values of the boolean
type.
Comparison operators, IN and BETWEEN operators take values of the same type as input and return values of the boolean
type. They also allow the use of tuples.
Tuple usage example:
(a, b) >= (valA, valB)
(a, b) IN ((valA0, valB0), (valA1, valB1), ...)
(a, b) BETWEEN ((16202224, 1) AND (16202224, 3), (2011740432, 6) AND (2011740432), (591141536) AND (591141536, 2), ...)
Functions in expressions can be of two types: scalar applied to a tuple of values and aggregate applied to a group of input data corresponding to a single key. Scalar functions can be used in any expression. Aggregation functions can only be used in the SELECT section if there is a GROUP BY section.
IDs
Column names containing special characters must be wrapped in square brackets.
Examples: t.[a.b], t.[c-1], t.[[d]] from [//path] as t
where a.b
, c-1
, and [d]
are column names.
In the resulting schema, the square brackets in the column names will be omitted wherever possible.
For the [my.column-1], [my+column-2] from ...
query, the schema will be "my.column-1", "my+column-2"
.
If expressions without an alias (AS name
) are specified in the query, and the columns contain special characters, square brackets will be added.
For the [my.column-1] + x, [my+column-2] from ...
query, the schema will be "[my.column-1] + x", "my+column-2"
.
Synonyms
Expressions can be named using the AS keyword. Synonym support is implemented similarly to ClickHouse. Unlike standard SQL, synonyms can be declared not only at the top level of expressions: ((1 as x) + x) as y
. In addition, synonyms can be used in all query sections. For example: a from [...] group by x % 2 as a
.
This behavior is compatible with standard SQL as long as no synonyms are used that overlap the column names of the source tables.
The table shows an example of using synonyms for a table with the UpdateTime
column.
Synonym usage example:
Expression | YTsaurus | In standard SQL |
---|---|---|
UpdateTime / 1000 as UpdateTime, UpdateTime as b |
As a result, UpdateTime = b | As a result, UpdateTime != b |
UpdateTime / 3600 % 24 as Hour from ... group by Hour |
Grouping will be by UpdateTime / 3600 % 24 |
Grouping will be by UpdateTime / 3600 % 24 |
UpdateTime / 3600 % 24 as Hour where Hour = ... |
Filtering will be by UpdateTime / 3600 % 24 |
Filtering will be by UpdateTime / 3600 % 24 |
UpdateTime / 1000 as UpdateTime where in (...) |
Filtering will be by UpdateTime / 1000 |
Filtering will be by the UpdateTime source field |
UpdateTime / 1000 as UpdateTime from ... group by UpdateTime |
Grouping will be by UpdateTime / 1000 |
Grouping will be by the UpdateTime source field |
UpdateTime from ... group by UpdateTime / 1000 as UpdateTime |
Grouping will be by UpdateTime / 1000 |
AS is not supported within group by |
max(UpdateTime) as UpdateTime where UpdateTime between ... |
There will be an error because where cannot use an aggregate | Filtering will be by the UpdateTime source field |
Literals
Expressions may contain literals that encode typified values.
To set numbers with a sign, decimal numbers are used (for example, 100,500
or 42
). To set numbers without a sign, decimal numbers with the u
suffix are used (for example, 100,500u
, 42u
).
Floating point numbers use a C-like decimal notation (for example, 3.1415926
) with an integer and fractional part separator.
C-like string literals (like "hello"
or "world"
) are used to specify strings.
Scalar functions
Note
Some functions are polymorphic: they can take values of several types. The signatures of such functions are described either using type variables (denoted by capital letters: A
, B
, ...), or using an explicit enumeration of taken types (denoted: int64 | uint64
).
General functions
if(cond, then, else) :: boolean -> A -> A -> A
Conditional operator. If the cond
expression is true, the function result is the then
value. Otherwise, it is else
.
is_null(x) :: A -> boolean
Checks whether the specified value is NULL
.
is_finite(x) :: double -> boolean
Checks whether the specified value is a finite floating point number (i.e. it isn't infinite or NaN
).
transform(a, (a1, a2, ...), (b1, b2, ...)) :: A -> List[A] -> List[B] -> B
transform[a2), ((a11, a12), ...), (v1, ...](a1,) :: Tuple -> List[Tuple] -> List[B] -> B
Convert a value (or tuple) according to an explicit display of some elements on other elements.
If there is no corresponding value, NULL
is returned.
The complexity is constant.
greatest(a1, a2, ...) :: A* -> A
Returns the argument with the greatest value.
Working with strings
is_substr(s, t) :: string -> string -> boolean
Checks whether the s
string is the t
substring.
is_prefix(p, t) :: string -> string -> boolean
Checks whether the p
string is the t
prefix.
lower(s) :: string -> string
Converts the s
string to the lower case.
Accessing containers
If a table column has the Composite
data type, you can use the following syntax to access that column's fields:
- To access
struct
fields, use a dot. - To access
tuple
fields, use a dot. Indexing is zero-based. - To access
dict
fields, use square brackets. - To access
list
fields, use square brackets. Indexing is zero-based.
The correctness of accessing struct and tuple fields is checked before starting the query's execution. The correctness of accessing map and list fields is checked during the query's execution.
To enable this syntax, make sure to set syntax_version=2
in the query parameters. Starting with this version of the syntax, strings are escaped with backticks
.
To access containers, you need to specify the full column name, including the table alias.
Usage examples:
t.struct.member,
t.tuple.0,
t.dict["key"],
t.list[1+1]
from `//tmp/test` as t;
$ yt create table '//tmp/test' --attributes '{dynamic=true; schema=<"unique_keys"=%true;"strict"=%true;>[{name=a;sort_order=ascending;type=int64;};{name=b;type_v3={type_name=struct;members=[{name=c;type={type_name=list;item=int64}}]}}]}'
$ yt mount-table --path '//tmp/test'
$ echo '{a=0;b={c=[]}}' | yt insert-rows --table '//tmp/test' --format yson
$ echo '{a=1;b={c=[1;2;3]}}' | yt insert-rows --table '//tmp/test' --format yson
$ echo '{a=2;b={c=[4]}}' | yt insert-rows --table '//tmp/test' --format yson
$ yt select-rows 't.b.c from `//tmp/test` as t' --syntax-version 2 --format json
{"t.b.c":[]}
{"t.b.c":[1,2,3]}
{"t.b.c":[4]}
$ yt select-rows 't.b.c[0] from `//tmp/test` as t' --syntax-version 2 --format json
{"t.b.c[0]":null}
{"t.b.c[0]":1}
{"t.b.c[0]":4}
YSON
Working withAttention!
A fixed key order in dictionaries is not guaranteed, so comparisons and groupings may not behave as expected.
Extracting data
The query language provides a set of functions for extracting data:
-
try_get_int64
,get_int64
,try_get_uint64
,get_uint64
,try_get_double
,get_double
,try_get_boolean
,get_boolean
,try_get_string
,get_string
,try_get_any
,get_any
These functions take two arguments,(yson, path)
, where:yson
is a value of theany
type that contains YSON.path
is a string representing the path to the desired field in YPATH format.
The version with the
try_
prefix returnsNULL
if there is no field of the desired type at the specified path. The version withouttry_
returns an error if the field is missing.Example: For the table row
{column=<attr=4>{key3=2;k={k2=<b=7>3;k3=10};lst=<a=[1;{a=3};{b=7u}]>[0;1;<a={b=4}>2]}}
try_get_uint64(column, "/lst/@a/2/b")
returns7u
. -
list_contains(list, value) :: any -> (string | int64 | uint64 | boolean) -> boolean
Searches forvalue
in thelist
YSON list of theany
type. The searchedvalue
must have a scalar type. The list does not have to be homogeneous, meaning that it can contain values of different types. The comparison is type-sensitive. -
list_has_intersection(list, list) :: any -> any -> boolean
Takes two YSON lists as input and returnstrue
if they contain at least one common element. The lists must be homogeneous. -
any_to_yson_string(yson) :: any -> string
Converts a value of theany
type into a string containing its binary YSON representation. -
yson_length(yson) :: any -> int64
Calculates the number of elements in a list or map.
Generating YSON
make_entity()
. Example:make_entity() -> #
make_map(args...)
. Example:make_map("a", 1, "b", 2) -> {a=1;b=2}
make_list(args...)
. Example:make_list("a", 1, 2, 3) -> [a;1;2;3]
Working with regular expressions
The Google RE2 library is used to work with regular expressions. The library operates in UTF-8 mode. The syntax of regular expressions is described on a separate page.
regex_full_match(p, s) :: string -> string -> boolean
Checks that the s
string matches the p
regular expression.
regex_partial_match(p, s) :: string -> string -> boolean
Checks that the s
string contains a substring that matches the p
regular expression.
regex_replace_first(p, s, r) :: string -> string -> string -> string
Replaces the first occurrence of the p
regular expression in the s
string with the r
string.
regex_replace_all(p, s, r) :: string -> string -> string -> string
Replaces all occurrences of the p
regular expression in the s
string with the r
string.
regex_extract(p, s, r) :: string -> string -> string -> string
Enables the substrings that match the s
regular expression to be extracted from the s
string and replaced r
.
For example, the result of the regex_extract("([a-z]*)@(.*)", "email foo@bar.com", "\\1 at \\2")
expression will be foo at bar.com
.
regex_escape(p) :: string -> string
Shields special characters of the regular expression language in the p
string.
LIKE operator
The operator can be used as follows:
<string> [not] like <pattern> [escape <escape-symbol>]
The operator checks that the string
string matches the pattern
template.
The underscore (_
) in the template matches any character.
The percent sign (%
) matches any sequence of characters (including an empty sequence).
To literally use _
or %
in the template, you need to escape them using escape-symbol
(\
by default).
If there is filtering by the primary key's string prefix in the query, is_prefix
should be used to make the range output work.
The ilike
construction is used for case-insensitive search: 'Abc' ilike 'abc'
.
In rlike
and regex
constructions, the pattern
template is set in re2 syntax.
Example:
'abcdef' like 'a_c_%f'
'q' not like 'x_' escape 'x'
'Abc' ilike 'abc'
'a b' rlike '\\w+ b'
Working with dates
UTC timezone is used when rounding
timestamp_floor_year(t) :: int64 -> int64
Get the timestamp of the year (as of 0:00 on January 1) for the specified timestamp.
timestamp_floor_month(t) :: int64 -> int64
Get the timestamp of the month (as of 0:00 on the first day of the month) for the specified timestamp.
timestamp_floor_week(t) :: int64 -> int64
Get the timestamp of the week (as of 0:00 on Monday) for the specified timestamp.
timestamp_floor_day(t) :: int64 -> int64
Get the timestamp of the day (as of 0:00 at the start of the day) for the specified timestamp.
timestamp_floor_hour(t) :: int64 -> int64
Get the timestamp of the hour (0 min 0 sec at the start of the hour) for the specified timestamp.
format_timestamp(t, format) :: int64 -> string -> string
Formats the time specified in the timestamp according to the provided format string. Uses the same convention as std::strftime
.
Hashing
farm_hash(a1, a2, ...) :: (int64 | uint64 | boolean | string)* -> uint64
Calculates FarmHash from the specified set of arguments.
Converting types
int64(x) :: any | int64 | uint64 | double -> int64
uint64(x) :: any | int64 | uint64 | double -> uint64
double(x) :: any | int64 | uint64 | double -> double
boolean(x) :: any -> boolean
string(x) :: any -> string
Converts the x
numeric argument to the target type. Rounding and overflow rules are standard and C-like.
To convert a numeric type to a string, there is a function:
numeric_to_string :: int64 | uint64 | double -> string
To convert a string to a number:
parse_int64 :: string -> int64
parse_uint64 :: string -> uint64
parse_double :: string -> double
NULL value
In most operators, using NULL
values in operands results in a NULL
value. Comparison operators have a different behavior. The result in them is always boolean
. This is to ensure that the behavior of comparison operations is the same both when ordering data in the table by key and when calculating expressions within a query. The need to compare with NULL
is due to the desire to make the order relation on the keys complete. NULL
is considered less than the other values.
Aggregation functions
The following aggregation functions are supported in the query language:
sum(expr) :: A -> A
: Calculates the sum.min/max(expr) :: A -> A
: Calculates the minimum or maximum.avg(expr) :: int64 -> double
: Calculates the average.cardinality(expr) :: int64 | uint64 | double | boolean | string -> uint64
: Calculates the number of different elements using the HyperLogLog algorithm.argmin/argmax(arg, expr) :: A -> int64 | uint64 | double | string | boolean -> A
: Calculates the argument value at which the expression reaches the corresponding extreme value.first(expr) :: A -> A
: Returns the first value of the group. During a sequential scan (when sorting by primary key), the function calculates the value of the first row in the group. If all aggregate functions in the query arefirst
, the engine stops the sequential scan as soon as it reaches theLIMIT
on unique group keys. For queries without a sequential scan,first
returns the value of any matching row.
Executing a query
The query is executed on the cluster in a distributed way. The query execution process is conventionally divided into two phases: coordination and execution. During coordination, multiple cluster nodes are defined to execute the query, and during execution, the data is processed directly. A typical scenario involves a user-defined query being decomposed into multiple execution fragments that are processed by cluster nodes. The final result is generated on the client by merging intermediate results received from cluster nodes.
There is an explain_query
command to display information about the query plan.
Coordination
The process of splitting a query into multiple parallel execution fragments in order to distribute the load is called coordination. Query coordination occurs both on the client and on the cluster nodes. The coordination process itself consists of the following steps:
- Defining the ranges of the source data.
- Splitting the query to process parts of the input data independently.
The input data for the query and its splitting options are determined by the structure of the main table specified in the query and the filtering predicate. Execution of queries on top of dynamic (sorted and ordered) tables is currently supported.
When working with sorted dynamic tables, the data splitting is two-level: the table is initially split into tablets and the query is sent to the machines serving the selected tablets, and then on each machine the tablet is further split into partitions to ensure concurrent execution within each machine. For more information about tablets, see Dynamic tables.
In the process of coordination, the cluster nodes that contain the data needed to execute the query are selected. The initial query is split into execution fragments and sent to the selected nodes. On each node, query execution can be additionally paralleled if a large enough amount of data is affected. Concurrency of query execution on a single node is limited by the max_subqueries
query parameter and the number of threads allocated to query execution in the cluster node configuration.
When the query is split for parallel execution, the calculation of predicates (WHERE
), groupings (GROUP BY
), and sortings (ORDER BY
) shifts to occur as close as possible to the data read operation. Only a minimal number of essential operators remain on the coordinator. For example, if the splitting of the input data results in exactly one part, then the entire filtering and grouping will be performed by the subordinate node and the coordinator will do nothing with the data.
Cutting off input data
During coordination, the (WHERE
) filtering predicate is analyzed. Based on a set of key table columns and predicate conditions, the data read ranges are output.
Range output can account for logical connectives (AND
, OR
, NOT
), comparison operators, IN
operator, BETWEEN
operator, and is_prefix
function. Once the ranges are output, some of the conditions from the predicate can be discarded if the conditions appear to always be true on the data read from the ranges.
The output ranges are a set of lower and upper read limits. The read limit is the prefix of the main table key.
If there are no computed columns in the table schema, the ranges are output as follows. The key columns are considered in their order in the schema as long as there are upper-level conditions in the predicate (connected by the AND
, OR
, and NOT
logical operators) that limit the values of these columns. Column conditions can be point (=
operator, IN
operator) and range ( !=
, <
, <=
, >
, >=
, is_prefix
). The resulting range is built as long as the point conditions are met and ends at the first range condition.
Examples:
Let the table have key columns: a, b, c
.
-
For the
a = 1 and b in (3, 4)
predicate, the following ranges will be output:[[1, 3] .. [1, 3]], [[1, 4] .. [1, 4]]
-
For the
a = 1 and b between 20 and 30 and c between 40 and 60
predicate, the following range will be output:[[1, 20] .. [1, 30]]
-
For the
a = 1 and b = 2 and c between 40 and 60
predicate, the following range will be output:[[1, 2, 40] .. [1, 2, 60]]
-
For the
a in (1, 2, 3) and b in (5, 6) and c between 40 and 60
predicate, the following ranges will be output:[[1, 5, 40] .. [1, 5, 60]], [[1, 6, 40] .. [1, 6, 60]], [[2, 5, 40] .. [2, 5, 60]], [[2, 6, 40] .. [2, 6, 60]], [[3, 5, 40] .. [3, 5, 60]], [[3, 6, 40] .. [3, 6, 60]]
-
For the
a = 1 and b = 2 and c between 40 and 60 or a between 10 and 20
predicate, the following ranges will be output:[[1, 2, 40] .. [1, 2, 60]], [[10] .. [20]]
An important feature of the output ranges is that the lower and upper limits have a common prefix and differ only by the last component.
If there are computed columns in the table schema, the ranges are first output without the computed columns and then are either supplemented with computed columns or trimmed to the first computed column that cannot be computed. For each range, the computed column can be computed when placing in the expression only the columns belonging to the common prefix of the lower and upper limit.
Examples:
Let the table have key columns: h = hash(a, b), a, b, c
.
-
For the
a = 1 and b in (3, 4)
predicate, the following ranges will be output:[[hash(1, 3), 1, 3] .. [hash(1, 3), 1, 3]], [[hash(1, 4), 1, 4] .. [hash(1, 4), 1, 4]]
-
For the
a = in (1, 2)
predicate, the range cannot be output, because the computed column depends not only on thea
column, but also on theb
column. -
Special consideration is given to the case when the computed column is an expression taken by the module:
h = hash(a, b) % 3, a, b, c
. In that case, there is no need to compute the column value, because the set of values is already limited by the module. When the ranges are output, all possible values of the computed column with the expression taken by the module are considered. For thea = in (1, 2)
predicate, the following ranges will be output:[[0, 1] .. [0, 1]], [[0, 2] .. [0, 2]], [[1, 1] .. [1, 1]], [[1, 2] .. [1, 2]], [[2, 1] .. [2, 1]], [[2, 2] .. [2, 2]]
-
For the
a between 10 and 20
predicate:[[0, 10] .. [0, 20]], [[1, 10] .. [1, 20]], [[2, 10] .. [2, 20]]
The number of output ranges is limited by the range_expansion_limit
option.
For efficient query execution, it is important to use the information from the primary table key as much as possible in order to cut off as much data as possible when coordinating the query.
If the ranges could not be output, the table is read as a whole. Such reading is called full scan. A rather large table (triple digit gigabytes) cannot be read within the time limit (by default, query_timeout
is one minute) allocated for query execution. To prohibit full scan, you can set the allow_full_scan
query option to false
.
JOINS
You can also specify additional reference tables in the query to compute the final response or for additional filtering. Only lookup joins are currently supported, i.e. a JOIN execution schema where the master data handler explicitly queries the additional table by key.
In the query itself, this means that the condition for JOIN must contain such a set of key columns of the reference table that the ranges for reading the data can be derived from the limit on these columns. If JOIN cannot be executed using the reference table index, the "Foreign table key is not used in the join clause" error will be returned. To disable such behavior, use the allow_join_without_index
parameter.
In general, JOIN is executed as follows. On each cluster node, the data is read from the main table shard, accumulated in memory, and multiple JOIN keys for the reference table are computed. This is followed by a query to the reference table with the read ranges and optional predicate obtained based on the JOIN keys. Then JOIN is executed in memory, and execution continues as usual.
When using multiple JOINs in a query, it would take a lot of time to execute them consecutively. Individual JOINs are therefore grouped into sets that can be executed concurrently. So when a JOIN group is executed while reading data from the main table, a set of JOIN keys is built for each reference in the group. Next, queries to read data from references are sent concurrently, and, once the data is received, JOIN is executed, forming the resulting rows. The complete resulting set of rows is not materialized in memory, but as JOIN is executed, the rows are passed to the next operator (for example, grouping).
JOIN is executed in a special way when the master table and the reference table share a common key prefix to within a JOIN condition. In that case, the ranges for reading the reference table are already known before reading the main table during the coordination phase of the query. Therefore, the query to read the reference table is sent immediately after coordination.
Debugging a query
Execution statistics
You can specify the --print-statistics
option in the CLI. The statistics will be printed as follows:
{
"incomplete_output" = %false;
"async_time" = 20458u;
"memory_usage" = 0u;
"inner_statistics" = [
{
"incomplete_output" = %false;
"async_time" = 12098u;
"memory_usage" = 0u;
"inner_statistics" = [
{
"incomplete_output" = %false;
"async_time" = 4547u;
"memory_usage" = 0u;
"sync_time" = 23u;
"codegen_time" = 8u;
"rows_read" = 2164;
"execute_time" = 0u;
"read_time" = 13u;
"incomplete_input" = %false;
"write_time" = 0u;
"rows_written" = 2164;
"data_weight_read" = 77352;
};
...
];
"codegen_time" = 5u;
"sync_time" = 13u;
"rows_read" = 26908;
"execute_time" = 5u;
"read_time" = 0u;
"incomplete_input" = %false;
"write_time" = 0u;
"rows_written" = 26908;
"data_weight_read" = 1176824;
};
...
];
"codegen_time" = 11u;
"sync_time" = 64u;
"rows_read" = 188520;
"execute_time" = 16u;
"read_time" = 27u;
"incomplete_input" = %false;
"write_time" = 8u;
"rows_written" = 188520;
"data_weight_read" = 8245048;
}
The statistics have a hierarchical structure and correspond to the query execution structure.
-
The first level is aggregation on the coordinator (http or rpc proxy).
-
The second level is aggregation on nodes.
-
The third level is node-level execution of a part of the subquery to the thread pool.
-
rows_read
: Number of rows read. -
data_weight_read
: The amount of read data in bytes in uncompressed form. -
codegen_time
: Code generation time. After the first code generation, the query template (query without literals) is cached. -
execute_time
: Query execution time excluding read time (decoding data from the chunk format). -
rows_read
: Number of rows read. -
read_time
: Synchronous read time. -
wait_on_ready_event_time
: Reader data waiting time. -
async_time
: Total waiting time. If it differs significantly from "wait_on_ready_event_time", this means that the query is waiting for the CPU to allocate time in the fair share scheduler.
The explain-query command
The explain rows command can be used to debug a query. The command outputs the result in a structured form.
Example:
{
"udf_registry_path" = "//sys/udfs";
"query" = {
"where_expression" = "((((oh.ff_status = ?) AND (o.fake_order_type = ?)) AND (NOT is_null(o.external_id))) AND (NOT is_null(oh.order_update_time))) AND (oh.id > ?)";
"is_ordered_scan" = %false;
"joins" = [
[
{
"lookup_type" = "source ranges";
"common_key_prefix" = 0u;
"foreign_key_prefix" = 1u;
};
];
];
"common_prefix_with_primary_key" = ...;
"key_trie" = "(key0, { (0#0:0#<Max>] })";
"ranges" = ...;
};
"subqueries" = {
// Part of the query to be executed on the nodes.
};
"top_query" = {
// Part of the query to be executed on the proxy.
};
}
where_expression
: Syntactic representation of the "where" condition from which read ranges are derived (ranges
).is_ordered_scan
: Defines whether the order of the table rows will be retained when reading the data. This mode may be needed when implementing pagination. If you need to read the entire set of rows that meet the WHERE condition (no LIMIT), it is faster to read concurrently without preserving the order of rows in the table.joins
: Contains a list of join groups. Join within a group is executed concurrently for multiple tables.lookup_type
: The way of specifying read ranges when executing join. Possible options: source ranges, prefix ranges, and IN clause. The source ranges mode is the most optimal one. In prefix ranges mode, join keys are copied. This occurs if the join condition contains expressions or table fields that are not a secondary table key prefix. In IN clause mode, join is executed as a subquery with an IN expression. This mode is used if the read ranges of the secondary table cannot be derived from the join condition. If there is an additional AND condition in join, an attempt is made to output the read ranges using both the join condition and the additional AND condition.common_key_prefix
: The size of the common key prefix of the primary table and the secondary table.foreign_key_prefix
The size of the secondary table's key prefix that is derived from the join condition.common_prefix_with_primary_key
: The size of the table's primary key prefix contained in the grouping condition. This enables you not to make a common hash table for all keys (grouping keys with different prefixes cannot match). When using group by and order by concurrently, a non-zero common prefix with the primary key enables order by + limit computation to be transferred to the nodes and reduces the amount of data transferred to the proxy (coordinator).ranges
: A list of table read ranges obtained from the "where" condition.key_trie
: An intermediate representation of the key column limits generated from the "where" condition. The read ranges (ranges
) are then derived from the key trie.top_query
,subqueries
: Parts of the query running on different cluster nodes. To learn more, see Executing a query.
Extensions and settings
Query complexity limits (Options)
Option in the driver configuration:
query_timeout
Options of individual queries:
input_row_limit
: The limit on the number of rows that are read on one cluster node in one thread.output_row_limit
: The limit on the number of rows that are output on one cluster node in one thread. This value also limits the number of rows in grouping on one cluster node.range_expansion_limit
: The maximum number of ranges that will be output from the WHERE condition.fail_on_incomplete_result
: Defines the behavior in case of exceedinginput_row_limit
oroutput_row_limit
.memory_limit_per_node
: The limit on the amount of memory available to a query on one cluster node.
Named parameters
You can use parameter placeholders in the query. Example:
a from `//t` where b = {first} and (c, d) > {second}
The first
and second
parameters are set using a YSON map that can be specified in the placeholder_values
query parameter:
client.select_rows(
"a from `//t` where b = {first} and (c, d) > {second}",
placeholder_values={'first': 1, 'second': [2, 'b']},
)
Distributing resources between queries
Queries are executed using a fair share CPU scheduler. Query scheduling is handled independently for each node. By default, an equal amount of CPU resources is allocated to all queries that are executed on the same node. This ensures that a node executing multiple heavy queries can perform a light query in a short and predictable amount of time. However, this does not protect you from scenarios where a cluster node gets overloaded with queries. In this case, the execution speed decreases proportionally to the number of concurrently executed queries. For example, a system user might initiate a large number of queries that will consume the bulk of the CPU. To address this scenario, the system supports a two-level fair share mechanism: besides distributing CPU resources between individual queries, it allows you to group queries together and distribute resources between these groups. You can group queries (for example, by user) by specifying a compute pool in the execution_pool
query parameter. Queries that share the same execution_pool
are grouped together. Each group is allocated its own share of resources. A group's resources are allocated between all individual queries within that group.
By default, each pool is assigned a weight of 1. To assign a different weight value, create a node with the pool's name in the //sys/ql_pools
directory, add the @weight
attribute for this node, and specify the use
permission for the group (user) in the ACL.
By default, queries are executed in the default
pool.
