Working with Microsoft Excel tables

The YTsaurus web interface allows to upload small Microsoft Excel spreadsheets into static YTsaurus tables and export data from strict-schema static tables as Microsoft Excel spreadsheets.

Upload to a new table

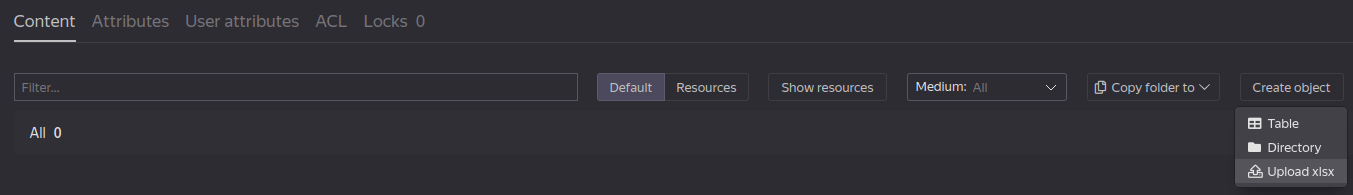

To upload data and create a YTsaurus table at the same time, use the Create object menu on the directory page.

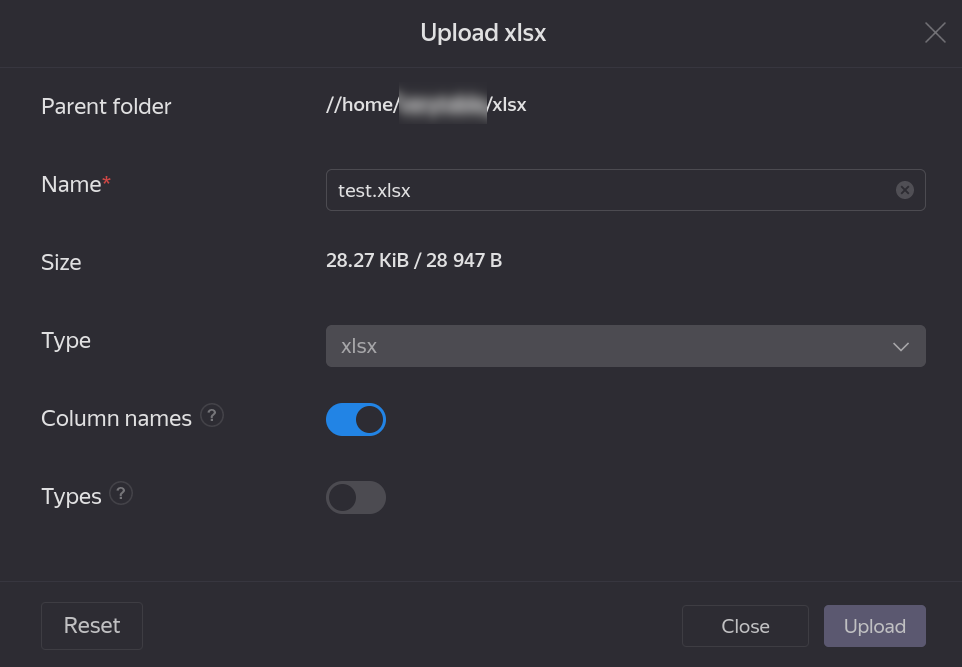

Be sure to set the Column names and the Types toggles to the correct values in the upload menu.

With enabled Column names, column names are displayed in the first row of an Excel spreadsheet. If a spreadsheet doesn't have a header row, the Excel column names, such as A, B, C, and so on, are used as column names in the YTsaurus table.

With enabled Types, there's a row with types. The row with types must follow the row with column names (if present). Types are defined in the type format (see type mapping).

Uploading into an existing table

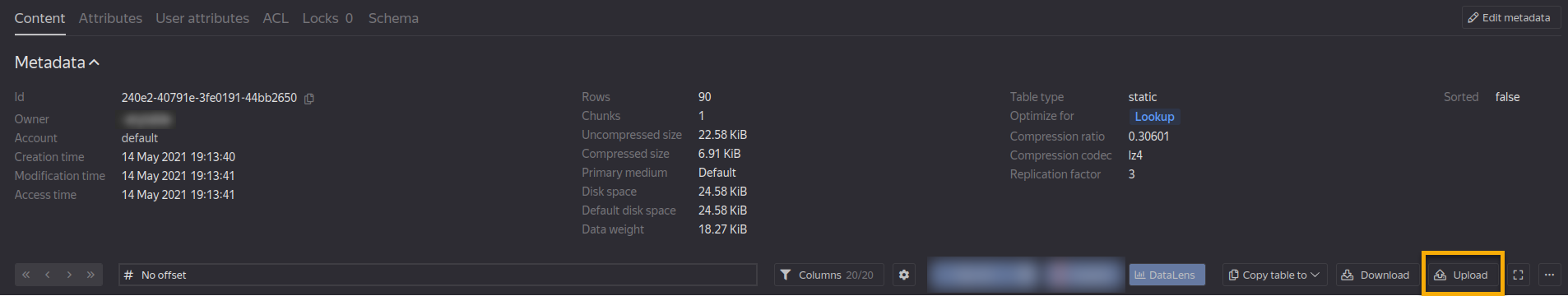

To upload data into an existing YTsaurus table, click the Upload button on the table page.

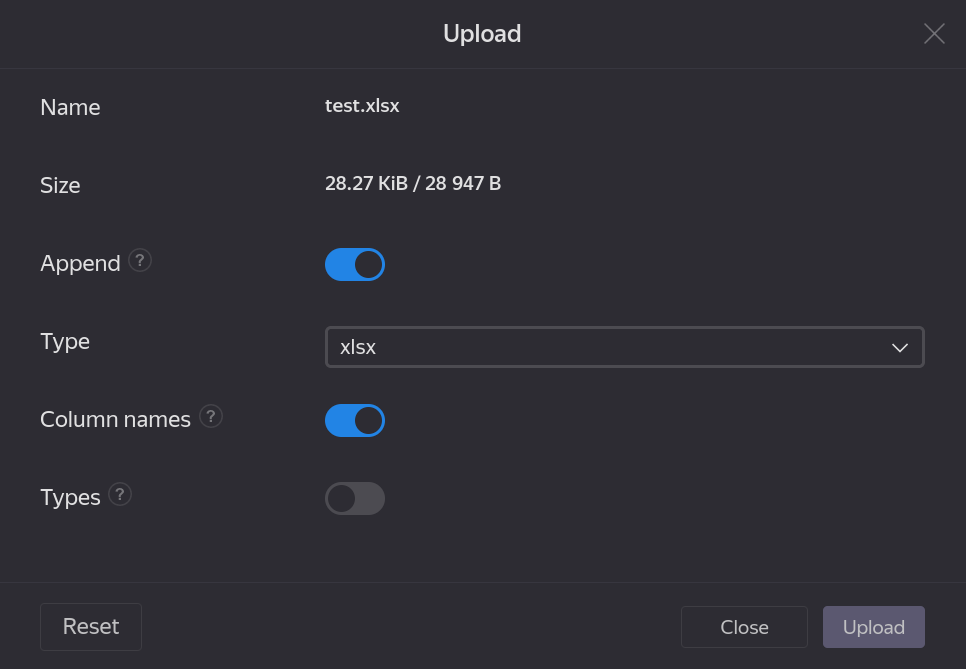

Use the Append toggle in the upload menu to choose the upload mode. The on state corresponds to rows being appended at the end of the YTsaurus table, the off state means that the table will be overwritten.

Upload limitations

• Only the first sheet of an Excel workbook is uploaded.
• Maximum number of rows is 1,048,576.
• Maximum number of columns is 16,384.
• Maximum input file size is 50 MB.

Downloading

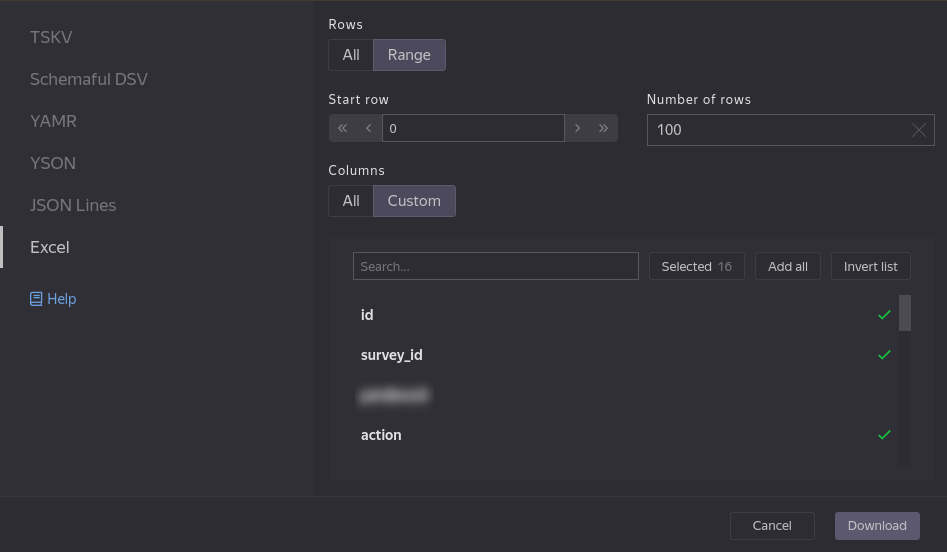

The interface provides a way to specify the required row and column subset.

The first row of the output contains column names, while the second one their types.

Limitations

• Strict-schema static tables.
• Maximum number of rows is 1,048,574.
• Maximum number of columns is 16,384.
• Maximum output file size is 50 MB.
• Maximum string length in a cell is 32,767; Strings longer than 32,767 are truncated.

Type mapping

Microsoft Excel supports 4 data types: Logical, Number, Text, and Error.

YTsaurus data type description	Representation in type	Representation in type_v3	Representation in Excel
An integer within the range [-2^63, 2^63-1]	int64	int64	Number*
An integer within the range [-2^31, 2^31-1]	int32	int32	Number
An integer within the range [-2^15, 2^15-1]	int16	int16	Number
An integer within the range [-2^7, 2^7-1]	int8	int8	Number
An integer within the range [0, 2^64-1]	uint64	uint64	Number*
An integer within the range [0, 2^32-1]	uint32	uint32	Number
An integer within the range [0, 2^16-1]	uint16	uint16	Number
An integer within the range [0, 2^8-1]	uint8	uint8	Number
A 4-byte real number	float	float	Number*
An 8-byte real number	double	double	Number*
Standard true/false Boolean	boolean	bool (different from type)	Logical
A random sequence of bytes	string	string	Text*
A valid UTF-8 sequence	utf8	utf8	Text*
An integer within the range [0, 49673 - 1] that represents the number of days since the Unix epoch, with a representable date range of [1970-01-01, 2105-12-31]	date	date	Number**
An integer within the range [0, 49673 * 86400 - 1] that represents the number of seconds since the Unix epoch, with a representable time range of [1970-01-01T00:00:00Z, 2105-12-31T23:59:59Z]	datetime	datetime	Number**
An integer within the range [0, 49673 * 86400 * 10^6 - 1] that represents the number of microseconds since the Unix epoch, with a representable time range of [1970-01-01T00:00:00Z, 2105-12-31T23:59:59.999999Z]	timestamp	timestamp	Number***
An integer within the range [-49673 * 86400 * 10^6 + 1, 49673 * 86400 * 10^6 - 1] that represents the number of microseconds between two timestamps	interval	interval	Number*
An arbitrary YSON structure that is represented as a byte sequence and can't have a required=%true attribute	any	yson (different from type)	Text**

Number*

Number is a Double-Precision Floating Point value.

The number can have only 15 digits. When entering 99999999999999999 (10^17-1), the cell displays 99999999999999900.

Numbers exceeding this limit are exported as strings.

Number**

The value from the YTsaurus table is written to an Excel table cell as the Number type, without loss of accuracy. The date and datetime types are exported as Number with special display formats and appear in Excel as:

• date — 2020-12-05
• datetime — 2000-12-10 10:22:17

Number***

The value can't fit in Number.

Timestamp in milliseconds is exported as Number with special display formats (1969-12-30 00:00:00). For smaller units, it comes out as a string in the following format: 2006-01-02T15:04:05.999999Z.

Text*

Text is a string type. Maximum strings length in a cell is 32,768.

In YTsaurus, a string may be longer: up to 128 * 10^6. Long strings are truncated.

Text**

Values are serialized as YSON. Long strings are truncated like in Text*.

Missing values

For missing values of optional types, an empty string is added to the cell.
