Accounts

This section contains information about accounts and related quotas in the YTsaurus system. A description of the account hierarchy, examples of actions with accounts, and a list of account attributes are given.

General information

All types of data storage quotas are linked to the project account. An account is a service object in Cypress. All accounts have unique names. However, they are located in a separate namespace, so the username and account name may be the same. The account name is stored in the name attribute which is both readable and writable.

All accounts known to the system can be found at //sys/accounts. You can create and remove accounts using the create and remove commands.

Node attributes

Each Cypress node has the readable and writable account attribute. This attribute stores the name of the account to which this node is linked. In the case of files and tables, assigning an account causes its disk quota to be consumed. This takes into account the space physically allocated on the cluster nodes for data storage, so it depends on the replication degree (the replication_factor attribute), erasure coding method (the erasure_codec attribute), and the compression utilized (the compression_codec attribute).

Different Cypress nodes (files or tables) can refer to the same chunks. In addition, the same node can refer to a chunk multiple times. Such reuse can occur, for example, as a result of the copy command for tables and files, as well as the merge and erase commands for tables. Such chunks are counted in the quota once (with the maximum replication factor among the tables referring to them).

Nodes of all other types (other than files and tables) do not require data storage on cluster nodes and therefore do not consume the disk quota of the account.

In case of composite nodes, descendants automatically inherit the parent's account when created (unless otherwise specified). Setting the proper value of the account attribute on the user's home directory ensures that the tables and files created by the user are assigned to the proper account by default.

To find out how many and which resources a given Cypress node consumes, you should use its resource_usage attribute. There is also a computed recursive_resource_usage attribute that measures resource usage taking descendants into account. These attributes have the ClusterResources structure, see below.

To assign account A to a Cypress node, the user who initiated this change must have the use permission for account A. It must also have the write permission. An account for the node can likewise be specified at the time the node is created. In this case, you must also have the use permission.

When you copy Cypress parts with the copy command or move them with the move command, the accounts and the owners in the copied subtree change — they become equal to the account associated with the destination folder, and to the user who is copying them, respectively. To prevent changes to an account, use the preserve_account option.

If the user exceeds the account quota for certain resource types, the system starts denying the account further access to the exceeded resource type. This does not mean that an account never exceeds its limits when used. For example, the limits may have been forcibly set below usage. Besides that, disk and chunk quota consumption tracking works asynchronously, which can also result in exceeding allocated limits.

Account hierarchy

Accounts can be nested in other accounts. This enables you to flexibly configure quotas and naturally reflect the organizational structure to which users and projects belong in them. For example, there may be a general organization unit quota and nested project quotas, or a service account and sub-accounts of its constituent groups. The main advantage of representing accounts as a tree is that users are able to manage the quotas assigned to them independently, splitting them into parts and merging them as needed.

Further is a description of the hierarchical organization of accounts and the principles of working with this hierarchy — from the command line and the web interface.

Quotas

The quota given to any non-topmost account cannot exceed the quota of its parent (and, by induction, any ancestor).

By default, the sum of sub-account quotas cannot exceed the parent's quota. But such oversubscription can sometimes be convenient, so it can be enabled:

yt set //sys/account_tree/my_account/@allow_children_limit_overcommit %true

In this mode, the sum of children's limits can exceed the parent's limit. However, the limit of an individual sub-account must still be less than or equal to the limit of the parent account.

The above refers to consumption limits (limits), not used resources (usage). Resources used in an account are counted in its quota, as well as in the quotas of all its ancestors. Validation works the same way: if an increase in consumption causes the account or any of its ancestors to run out of quota, an error is generated.

Is it possible to borrow resources in non-leaf accounts?
It is technically possible, but it will be more difficult for the user to evaluate where the quota is spent.

Is it true that an account cannot overflow if it does not have the enabled flag that allows overcommit of child accounts?
It is true if and only if resources are not used directly in the account.

Viewing an account tree

Despite the hierarchical organization, accounts have globally unique names. This fact greatly simplifies working with them, because it enables you to refer to the account without specifying the full path to it.

In the YTsaurus web interface

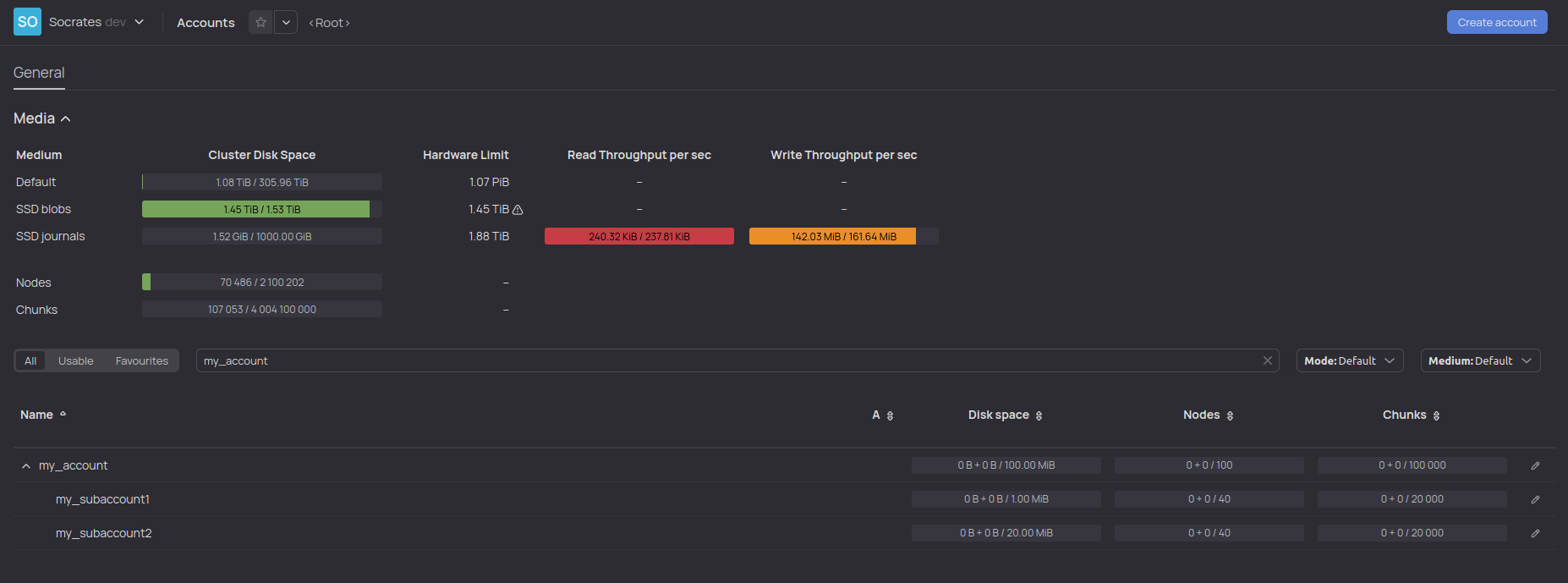

The account hierarchy is represented on the Accounts page (as well as in the Dashboard section). Due to the global uniqueness of names, when editing the path to an account, you only need to specify its name.

In the command line

The account tree in Cypress is located at //sys/account_tree. The full flat list is available at //sys/accounts (account names are globally unique, despite the hierarchical organization).

$ yt list //sys/account_tree/my_account
my_subaccount1
my_subaccount2

$ yt list //sys/accounts
my_account
my_subaccount1
my_subaccount2

Creating an account

The maximum allowable account tree height is 10.

You can create a topmost account in the YTsaurus web interface by clicking Create account on the Accounts page. You can create nested accounts using the command line or the YTsaurus web interface.

In the YTsaurus web interface

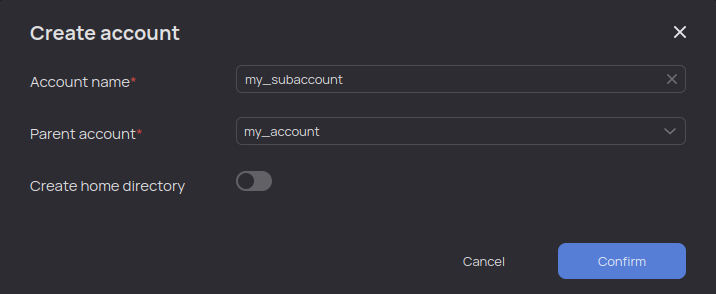

To create a new account, you need to:

  1. On the Accounts page, click Create account.
  2. Specify the name of the new account, the name of the parent account into which the created account will be nested, and the users responsible for the new account. If necessary, you can also request the automatic creation of a home directory corresponding to the account.

In the command line

To create an account, specify its name in the name attribute and the parent name in the parent_name attribute. If no parent name is specified, a topmost account will be created. Only YTsaurus cluster administrators have the right to create topmost accounts.

yt create account --attributes='{ name = "my_subaccount3"; parent_name = "my_account" }'

Removing an account

Accounts can be moved and renamed, so you should only remove an account when you really do not need it anymore.

Attention

Before removing an account, make sure there is no data in it. Otherwise, the account will be put into a special pending state instead of being removed until all associated Cypress nodes are removed, after which it will be removed automatically. You can neither use the account in that state, nor return it to its normal state.

In the YTsaurus web interface

To remove an account, you need to:

  1. On the Accounts page, find the account in the list and click the pencil icon to edit the account.
  2. In the dialog window that opens, go to the Delete section, click Delete, and confirm the action.
In the command line

To remove an account, specify the path to it:

yt remove //sys/accounts/my_subaccount3

# или

yt remove //sys/account_tree/my_account/my_subaccount3

Moving or renaming an account

In the YTsaurus web interface

To move an account you need to:

  1. On the Accounts page, find the account in the list and click the pencil icon to edit the account.
  2. In the dialog window that opens, in the General section, in the Parent drop-down list, select where to move the account.
In the command line

There are two ways to move an account:

  1. Moving an account using the parent_name attribute.
$ yt set //sys/account_tree/my_account/my_subaccount3/@parent_name my_subaccount2
$ yt exists //sys/account_tree/my_account/my_subaccount3
%false
$ yt exists //sys/account_tree/my_account/my_subaccount2/my_subaccount3
%true

Due to the global uniqueness of account names, you only need to specify the name of the parent, not the full path to it.

  1. Moving an account using the move command.
yt move //sys/account_tree/my_account/my_subaccount3 //sys/account_tree/my_account/my_subaccount2/my_subaccount3

Note that the full path to the account, including its name, is specified as the destination path. In particular, this enables you to rename an account at the same time as you move it.

Transferring resources from one account to another

In the YTsaurus web interface

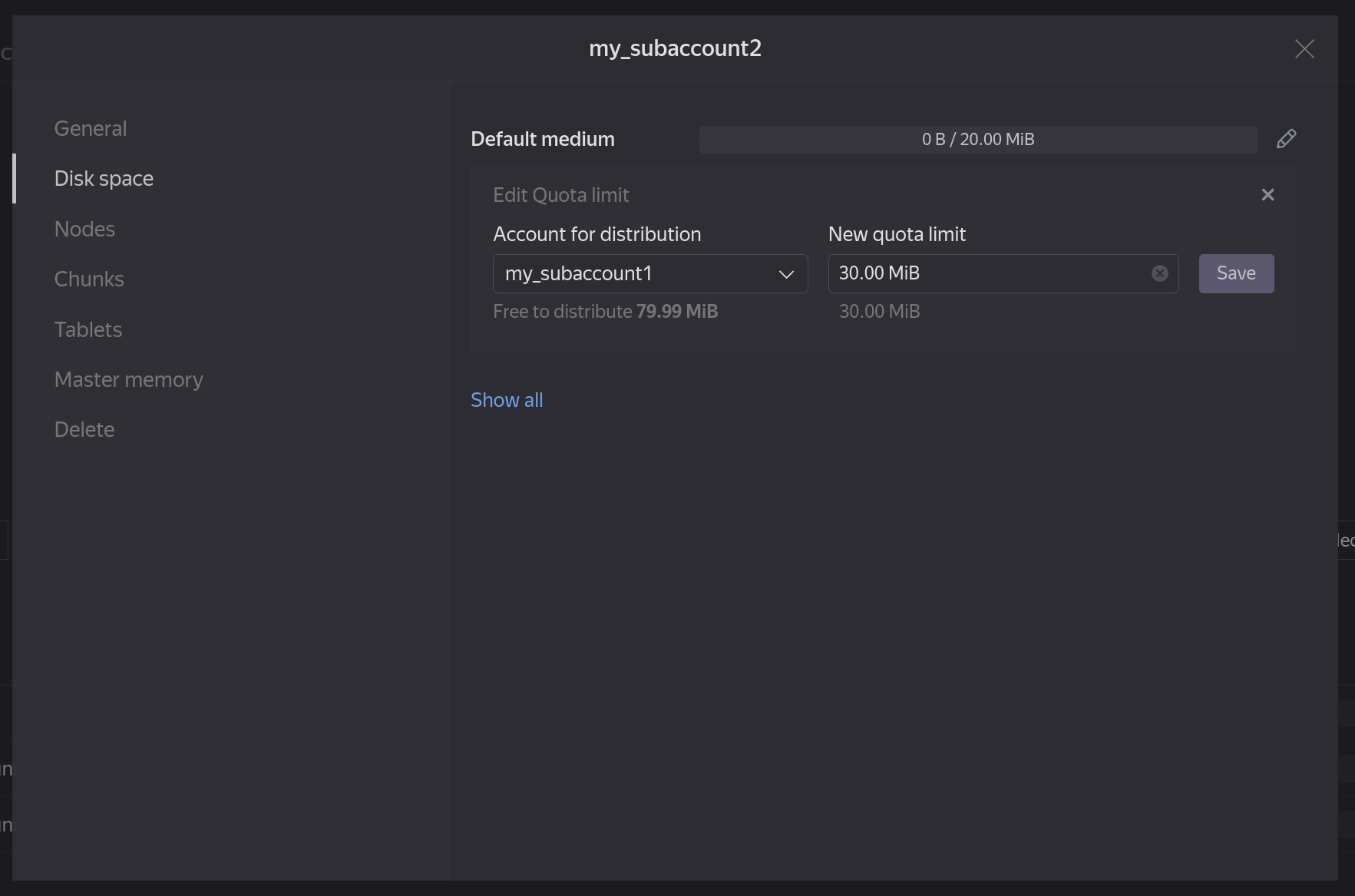

To transfer resources, you need to:

  1. On the Accounts page, find the account to which you want to transfer resources and click the pencil icon to edit the account.
  2. In the dialog window that opens, open the section corresponding to the type of resource that you want to transfer.
  3. Specify the account from which to reallocate resources (the parent account is suggested by default) and the new limit.
  4. Click Save.

In the command line

Transferring account resources using the transfer-account-resources command:

# yt transfer-account-resources <src_account> <dst_account> --resource-delta <resource_delta>
yt transfer-account-resources my_subaccount1 my_subaccount2 --resource-delta '{node_count=10}'

The resource-delta argument is a YSON structure of the ClusterResources type (see below). For example: {node_count=5;disk_space_per_medium={default=1024}}. You need to specify the amount of resources to be transferred, not the new limits. Missing quotas can be skipped.

In case of the argument command: invalid choice error, update the yt utility. For more information, see Try YTsaurus.

Built-in accounts

These accounts appear in the system at the moment of initialization. They cannot be removed.

  1. The tmp account. During initialization, it is assigned to the //tmp folder and therefore to all its descendants. By default, all authenticated users of the system (the users group) have the right to use this account.
  2. The sys account. During initialization, it is assigned to all other nodes. By default, no explicit permissions to use it are given to anyone. The account is used for the internal needs of the YTsaurus system.

Account attributes

Attribute Type Description
name string Account name (non-empty string)
parent_name string Parent account name
resource_limits ClusterResources Resource limits for the account
allow_children_limit_overcommit bool Whether the sum of sub-account limits can exceed the limit of this account (see above)
resource_usage ClusterResources Resources occupied directly by this account (including uncommitted transactions)
committed_resource_usage ClusterResources Resources occupied directly by this account (without taking into account active transactions)
recursive_resource_usage ClusterResources Resources occupied by this subtree of accounts (including uncommitted transactions)
recursive_committed_resource_usage ClusterResources Resources occupied by this subtree of accounts (without taking into account active transactions)
violated_resource_limits ViolatedClusterResources Resource excess flags for the account
recursive_violated_resource_limits RecursiveViolatedClusterResources For each resource type — the number of accounts that exceeded the limit in this subtree

ClusterResources is the following structure:

The ClusterResources structure

Attribute Type Description
disk_space integer Total disk space in bytes
disk_space_per_medium string->integer Disk space in bytes (for each medium)
node_count integer Number of Cypress nodes
master_memory integer Amount of consumed master server RAM
chunk_count integer Number of chunks
tablet_count integer Number of tablets
tablet_static_memory integer Memory volume for dynamic tables loaded into memory

The disk_space field is read-only. To change the limits, change the values of the disk_space_per_medium dict.

ViolatedClusterResources is the following structure:

The ViolatedClusterResources structure

Attribute Type Description
disk_space boolean Whether the disk space limit is exceeded for at least one medium
disk_space_per_medium string->boolean Whether the disk space limit is exceeded (for each medium)
node_count boolean Whether the limit on the number of Cypress nodes is exceeded
chunk_count boolean Whether the limit on the number of chunks is exceeded
tablet_count boolean Whether the limit on the number of tablets is exceeded
tablet_static_memory boolean Whether the limit on the memory volume occupied by dynamic tables loaded into memory is exceeded

RecursiveViolatedClusterResources is the following structure:

The RecursiveViolatedClusterResources structure

Attribute Type Description
disk_space integer The number of accounts in the subtree that have exceeded the disk space limit for at least one medium
disk_space_per_medium string->integer The number of accounts in the subtree that have exceeded the disk space limit (for each medium)
node_count integer The number of accounts in the subtree that have exceeded the limit on the number of Cypress nodes
chunk_count integer The number of accounts in the subtree that have exceeded the limit on the number of chunks
tablet_count integer The number of accounts in the subtree that have exceeded the limit on the number of tablets
tablet_static_memory integer The number of accounts in the subtree that have exceeded the limit on the memory volume occupied by dynamic tables loaded into memory
